Description
argument

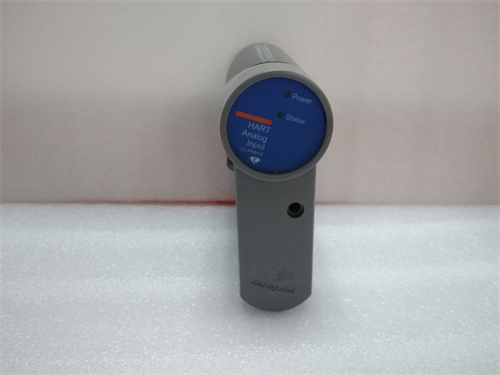

Manufacturer: Honeywell
Number: CC-PAIH02
Type: Hart analog input
Number of channels: 16 channels are supported, which may include 12 single-ended channels and 4 differential channels
Input signal: 4-20mA, 1-5V, 0-5V, etc
Input impedance: 250Ω, 500Ω, 1200Ω, 2500Ω
Accuracy: +/-0.10% F.S.@ 25°C
Linearity: +/-0.05% F.S.
Response time: 200 ms
Internal power monitoring: +5 VDC +/-5% @ 50 mA, +24 VDC +/-5% @ 50 mA
specification
Operating temperature range: -40°C to +70°C
Operating humidity range: 5% to 95% RH (non-condensing)
Power: 60W (Note that this power value may vary depending on the specific configuration and application scenario)
Size and weight
Weight: About 0.3kg
series
The CC-PAIH02 is an analog input module from Honeywell that is part of its industrial automation product family.
trait
HART communication function: Allows the module to communicate with HART-enabled devices such as transmitters and sensors
Comprehensive self-diagnosis: The module provides a range of self-diagnostic functions for troubleshooting
Optional redundancy: Modules can be configured with redundancy to provide higher reliability
Broken line detection: helps protect the module from damage caused by broken lines
Non-combustion power supply: suitable for use in hazardous areas
Easy installation and maintenance: Integrated wiring, reduced footprint, double row terminal design
effect
CC-PAIH02 plays an important role in industrial automation applications, especially in scenarios where high-precision analog signal inputs are required. It can be used for process control, temperature monitoring, level measurement, flow measurement, pressure measurement and other applications, through its high accuracy, high reliability and a variety of functional characteristics, improve the overall performance and reliability of industrial automation systems.
