Description
Size and weight:
Weight: According to the search results, there are two different statements, one is 0.3 kg, the other is 2 kg.
Features:
HART communication: Supports the HART communication protocol and can communicate with HART-enabled devices such as transmitters and sensors.
Self-diagnosis function: Provides comprehensive self-diagnosis function for troubleshooting.
Optional redundancy: Modules can be configured as redundancy to improve system reliability.
Broken line detection: helps protect the module from damage caused by broken lines.
Non-combustion power supply: suitable for use in hazardous areas.
A/D converter resolution: 16 bits.
Parameters and specifications:
Product Type: Hart analog input, differential/single-ended analog input.
Number of channels: Supports 16 channels, including 12 single-ended channels and 4 differential channels.
Input signal:
Current signal: 0-20 mA, 4-20 mA.
Voltage signal: 1-5 VDC, 0-5 VDC.
Input impedance: 250Ω, 500Ω, 1200Ω, 2500Ω.
Accuracy: +/-0.10% F.S.@ 25°C.
Linearity: +/-0.05% F.S.
Response time: 200 ms.
Internal power monitoring: +5 VDC +/-5% @ 50 mA, +24 VDC +/-5% @ 50 mA.
Power: 60W.
Functions:

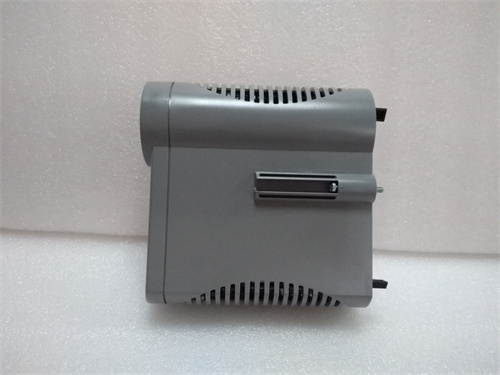

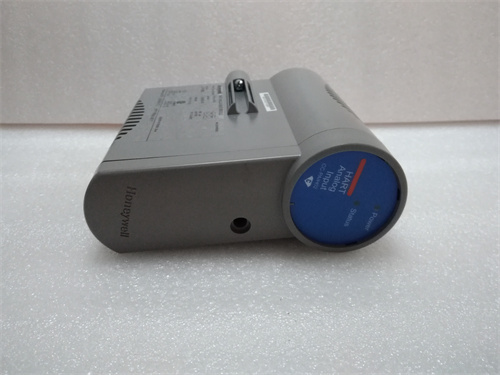

CC-PAIH02 is a versatile and reliable analog input module for a wide range of industrial automation applications.
It is often used in process control, temperature monitoring, level measurement, flow measurement, pressure measurement, vibration monitoring, asset tracking, condition monitoring and security systems.
