Description
Parameters:
Input signal type: analog signal
Input range: 0-20 mA, 4-20 mA, 1-5 VDC, 0-5 VDC input
Accuracy: +/-0.10% F.S at 25°C.
Linearity: +/-0.05% F.S.
Response time: 200 ms
Internal power monitoring: Support +5 VDC +/-5% @ 50 mA and +24 VDC +/-5% @ 50 mA power monitoring
Specifications:
Operating temperature range: -40°C to +70°C
Operating humidity range: 5% to 95% RH (non-condensing)
Number of channels: 16 channels, including 12 single-ended channels and 4 differential channels
Resolution of A/D converter: 16 bits
Size and weight:
Weight: 0.3kg and 0.56KG respectively.
Series:

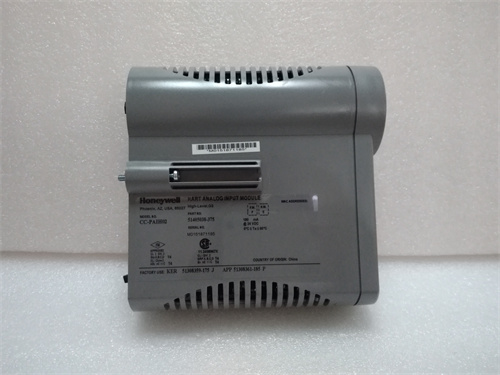

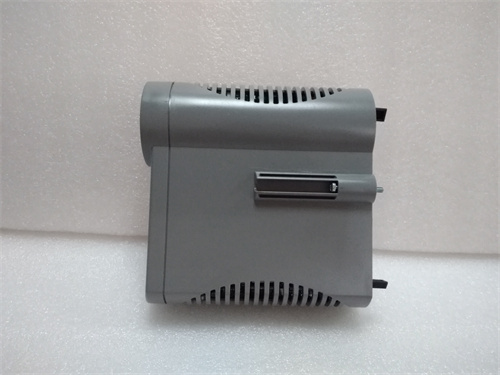

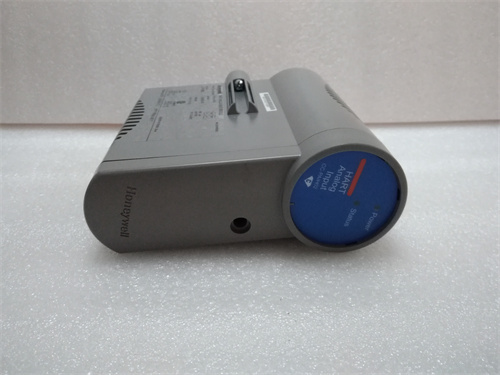

The CC-PAIH02 is part of Honeywell’s family of analog input modules.
Features:
HART communication function: Allows the module to communicate with HART-enabled devices such as transmitters and sensors.
Comprehensive self-diagnosis: Provides a range of self-diagnostic functions that can be used for troubleshooting.
Optional redundancy: Modules can be configured with redundancy to provide higher reliability.
Broken line detection: helps protect the module from damage caused by broken lines.
Non-combustion power supply: suitable for use in hazardous areas.
Functions:
CC-PAIH02 is a versatile and reliable analog input module for a wide range of industrial automation applications such as process control, temperature monitoring, level measurement, flow measurement, pressure measurement, etc.
