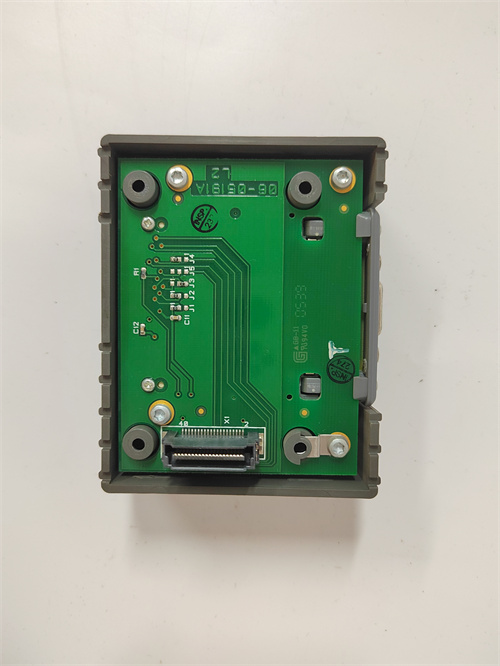

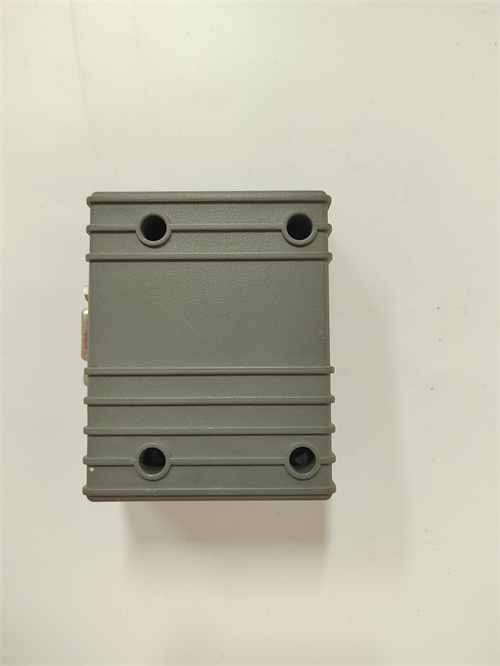

CB801

Description

4.‌Features‌:
–‌Multi-Protocol Support‌: As a communication interface module, it supports various communication protocols like PROFIBUS DP, Modbus RTU, and CAN2.
–‌High Reliability‌: Made with high-quality materials, ensuring long-term stable operation21.
–‌Easy Installation & Configuration‌: Designed for easy installation and configuration2.
–‌Short-Circuit & Overload Protection‌: As a circuit breaker, it provides protection against short circuits and overloads1.

5.‌Functions‌:
–‌Communication & Data Exchange‌: Enables communication and data exchange between ABB automation devices and systems2.
–‌Circuit Protection‌: Protects electrical circuits from damage caused by overcurrent or short circuits1.
–‌Automation Support‌: Supports various automation processes in industries like manufacturing, power, and transportation21.

6.‌Additional Notes‌:

• It’s essential to note that CB801 can refer to different products within ABB’s portfolio. Always refer to the official ABB product manual or contact ABB directly for the most accurate and up-to-date information specific to your CB801 product.
• The parameters, specifications, and features mentioned above may vary depending on the specific model and application.

1.‌Parameters‌:
–‌Voltage‌: Depending on the specific application, CB801 can support voltages ranging from 240V to 415V AC1.
–‌Current‌: The rated current can vary from 0.5A to 63A, with some models supporting up to 800A1.

2.‌Specifications‌:
–‌Series‌: CB801 can be part of ABB’s communication interface module series or a high-quality small circuit breaker series21.
–‌Data Transmission Rate‌: As a communication interface module, it can support data transmission rates up to 12 Mbps2.
–‌Trip Characteristics‌: As a circuit breaker, it offers B, C, and D trip characteristics1.

3.‌Dimensions & Weight‌:
–‌Size‌: Approximately 100mm x 60mm x 20mm for communication interface modules2, and may vary for circuit breakers.
–‌Weight‌: For communication interface modules, the weight is around 1.2kg3. For circuit breakers, the exact weight may differ.
