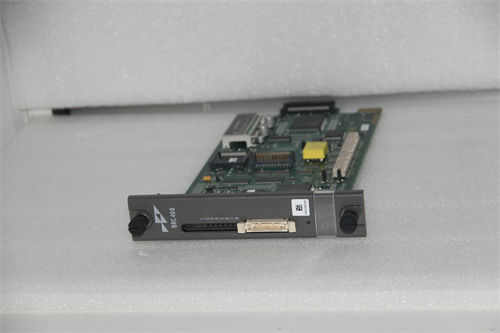

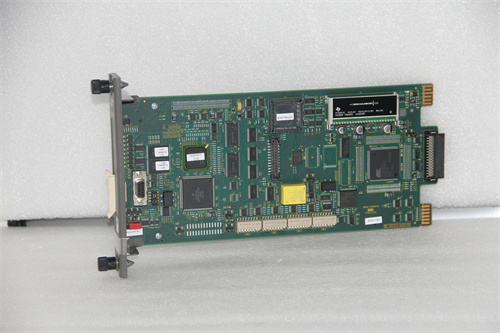

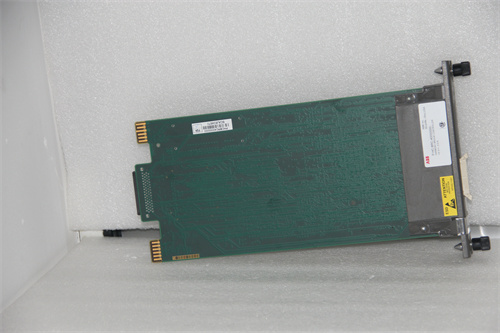

BRC400

Description

argument
Processor: Based on 160 MHz, 32-bit Freescale Coldfire processor (may vary with model updates, e.g. BRC400 operator panel may use 416MHz Intel Xscale processor)
Memory: For the operator panel version, 32MB Intel StrataFlash flash and 64MB RAM memory may be included
Operating system: For the Operator panel version, the operating system is Window CE.Net
Control algorithms: Libraries with more than 150 predefined control algorithms or functional codes
specification
Series: ABB HR series of scalable controllers, including BRC300, BRC400 and BRC410
Firmware version: May vary, for example V2.9
Size and weight
Size: Net depth: 71.12mm, net height: 358.14mm
Weight: About 2.58kg
trait
High-speed data processing: Capable of high-speed data processing for a wide range of applications and process requirements
Enhanced controller reliability: more than 10 times the performance of previous generation controllers
Scalability: Supports all HR series I/O, SD series I/O, and S800 I/O subsystems
Smart device integration: through HART I/O and PROFIBUS DP V0, V1, V2
User configured memory: Extended user configured memory (e.g. 2 MB NVRAM for BRC400/BRC410)
Advanced Graphics display: High resolution, 64,000 color TFT screen display (for operator panel version)
Seamless integration: Compatible with all ABB control systems, operating panels and PLC controllers from many manufacturers
