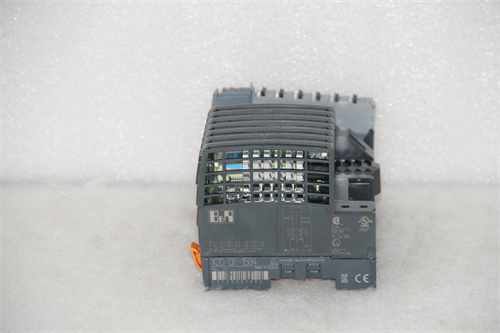

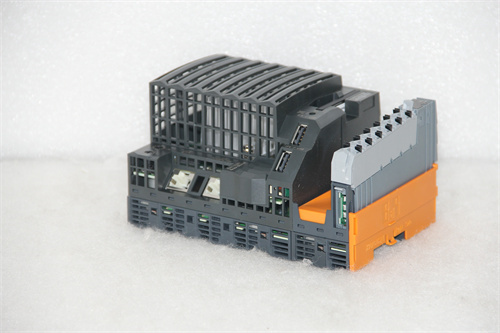

B&R X20CP1485

Description

Parameters and Specifications:

• Processor: Intel Celeron 650¹.
• Memory: 32 MB DRAM, 1 MB SRAM, expandable memory via CompactFlash².
• Interfaces: 1 X20 IF module slot, 2 USB ports, 1 RS232 port, 1 Ethernet (10/100 Base-T) port, 1 ETHERNET Powerlink interface².
• Supported System: PLC/DCS System³.

Dimensions and Weight:

• Size: 263337 (Specification)³. However, a more detailed dimension (e.g., in mm) is not provided.
• Net Weight: 2.3 kg³.

Series:

• B&R X20 Series

Features:

• Connectivity: Provides a range of interfaces for easy integration into various systems².
• Flexibility: Supports expandable memory and multiple interfaces for a wide range of applications²³.
• Ethernet POWERLINK: Enables real-time communication with other devices and systems⁴⁵.
• Display: Features a borderless design with an anti-glare glass surface and high-resolution display

Role and Function:

• The B&R X20CP1485 is a programmable control module/CPU controller used in industrial automation systems. It handles various control logic, data processing, and communication tasks¹³.
• With its POWERLINK interface, it can directly transmit HART data from sensors and actuators to controllers, enabling efficient data analysis and device configuration
