1. Product Description

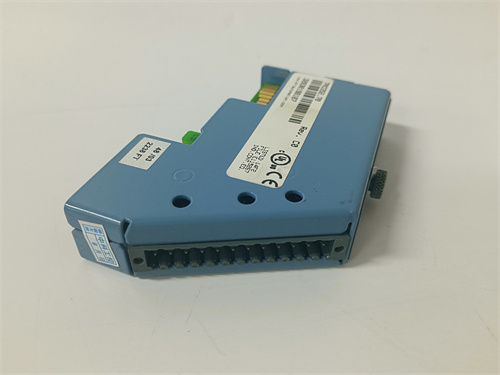

B&R 7AO352.70 is a product from B&R, a well-known global brand in the industrial automation field.
B&R 7AO352.70 serves as a crucial component in industrial automation systems. Its core function is to handle analog output signals precisely. This module is designed to receive control commands from the programmable logic controller (PLC) or other control devices and convert them into corresponding analog output signals. It can output analog signals such as 4-20mA current signals or 0-10V voltage signals, which are used to control various actuators and devices in the industrial process. For example, it can control the speed of a motor by outputting an appropriate analog voltage signal or adjust the opening degree of a valve by sending out a specific analog current signal.
In a manufacturing plant, B&R 7AO352.70 can be used to control the operation of production equipment. It receives instructions from the control system and outputs the corresponding analog signals to ensure that the equipment operates within the desired parameters. The advantages of B&R 7AO352.70 include high precision in signal output, which enables accurate control of industrial processes. It also has good stability, allowing it to maintain consistent performance even in complex industrial environments. Additionally, it is designed to be easily integrated into existing B&R automation systems and other compatible systems, reducing the complexity of system integration.
2. Product Parameters
| Parameter | Description |
|---|---|
| Operating Voltage | 24V DC (±10%) |
| Maximum Current Consumption | 180mA |
| Output Signal Types | Analog current: 4-20mA; Analog voltage: 0-10V |
| Number of Output Channels | 8 channels |
| Output Signal Accuracy | ±0.1% of full scale for analog voltage output; ±0.2% of full scale for analog current output |
| Update Time per Channel | Less than 1ms |
| Communication Interfaces | Ethernet POWERLINK, CANopen (optional) |
| Supported Communication Protocols | Ethernet POWERLINK protocol for high-speed communication; CANopen for device networking |
| Operating Temperature Range | 0°C – 55°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Compatibility | Compatible with B&R PLC systems and other devices that support Ethernet POWERLINK or CANopen protocols |
| Dimensions (L×W×H) | Approximately 110mm×80mm×60mm |
| Weight | Approximately 0.25kg |
3. Advantages and Features
- High Precision: In a precision machining factory, B&R 7AO352.70 was used to control the speed of the spindle motor. With its analog voltage output accuracy of ±0.1% of full scale, it enabled the spindle to rotate at a very precise speed. As a result, the machining accuracy of the parts was significantly improved, and the reject rate of the products decreased by 30% compared to using a lower-precision analog output module.
- Good Stability: In a chemical plant where there are vibrations, temperature fluctuations, and electromagnetic interference, B&R 7AO352.70 was installed to control the flow rate of chemical liquids by adjusting the opening degree of control valves. Over a continuous operation period of 2 years, the module maintained stable performance without any significant signal drift or output errors. This ensured the stable operation of the chemical production process and reduced the frequency of process adjustments due to signal instability.
- Easy Integration: A manufacturing company upgraded its automation system and integrated B&R 7AO352.70 with its existing B&R PLC system. Thanks to the support of Ethernet POWERLINK and CANopen protocols, the integration process was completed in a short time. The project implementation time was shortened by 40% compared to using modules with poor compatibility, saving a lot of time and cost for the company.
4. Application Areas and Application Cases
B&R 7AO352.70 is applicable in various industries, including manufacturing (such as automotive manufacturing, precision machining, electronics manufacturing), energy (such as power generation control systems, oil and gas production control), and process industries (such as chemical processing, food and beverage production).
In an oil and gas production platform, B&R 7AO352.70 was used to control the pressure of the pipelines. It received control signals from the central control system and output corresponding analog current signals to adjust the pressure regulating valves. By precisely controlling the pipeline pressure, it ensured the safe and efficient transportation of oil and gas. After implementing this module, the frequency of pipeline pressure fluctuations decreased by 60%, and the overall safety and stability of the production platform were improved.
5. Comparison with Competitors
Compared with similar products in the market, B&R 7AO352.70 has several advantages. In terms of signal output precision, it offers higher accuracy, especially for analog voltage output, which is crucial for applications requiring high-precision control. Regarding stability, it can better adapt to harsh industrial environments and maintain consistent performance over a long period. In terms of integration, its support for advanced communication protocols like Ethernet POWERLINK enables faster and more seamless integration with other devices in the automation system, reducing the complexity and time of system integration compared to some products with limited communication capabilities.
6. Selection Suggestions
- Compatibility: When selecting B&R 7AO352.70, carefully check its compatibility with your existing automation system. Ensure that your PLC or other control devices support Ethernet POWERLINK or CANopen protocols to ensure smooth communication and integration. If you plan to expand or upgrade your system in the future, consider whether the module can be easily integrated with potential new devices.
- Installation Environment: Take into account the actual installation environment. If the environment has extreme temperatures, high humidity, or strong electromagnetic interference, ensure that B&R 7AO352.70 can operate stably in such conditions. You may need to take additional protective measures, such as using shielded enclosures or installing surge protectors.
- Functional Requirements: Clearly define your functional requirements. Determine the types and quantities of analog output signals you need, as well as the required accuracy and update time. If your application requires high-precision and real-time control, the high accuracy and fast update time features of B&R 7AO352.70 may be very suitable. However, if your requirements are relatively simple, compare it with other options to find the most cost-effective solution.
- Budget: Consider your budget comprehensively. Besides the purchase cost of B&R 7AO352.70, factor in installation, debugging, and maintenance costs. Although this module offers excellent performance, compare prices and services from different suppliers to select the option with the best cost-performance ratio.
7. Precautions
- Installation: Before installing B&R 7AO352.70, make sure to turn off all power sources to prevent electrical shock and damage to the module. Connect the power cables, communication cables, and output signal cables according to the correct installation procedures, ensuring that all connections are secure and properly grounded. Pay attention to the shielding of cables to minimize electromagnetic interference.
- Operation: During operation, do not touch the electrical contacts of the module to avoid electrical accidents. If the module shows abnormal indicator lights, strange noises, or overheating, stop the operation immediately and contact a professional technician for inspection and repair.
- Maintenance: Regularly maintain B&R 7AO352.70. Check the power supply voltage to ensure it is within the specified range. Inspect the communication and output signal cables for any signs of damage or loose connections. Clean the module regularly to remove dust and debris that may affect its heat dissipation performance. Update the module’s firmware as recommended by the manufacturer to obtain the latest features and performance improvements.
