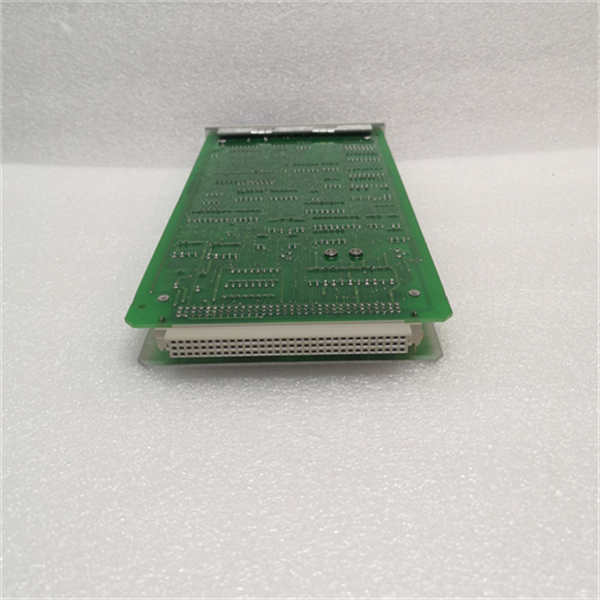

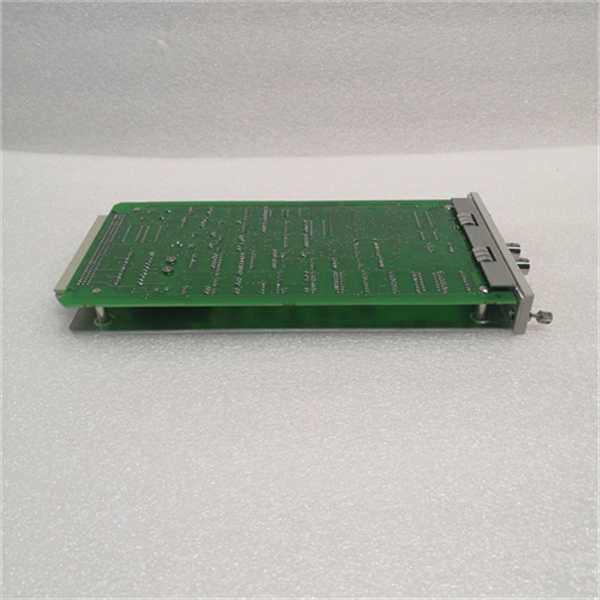

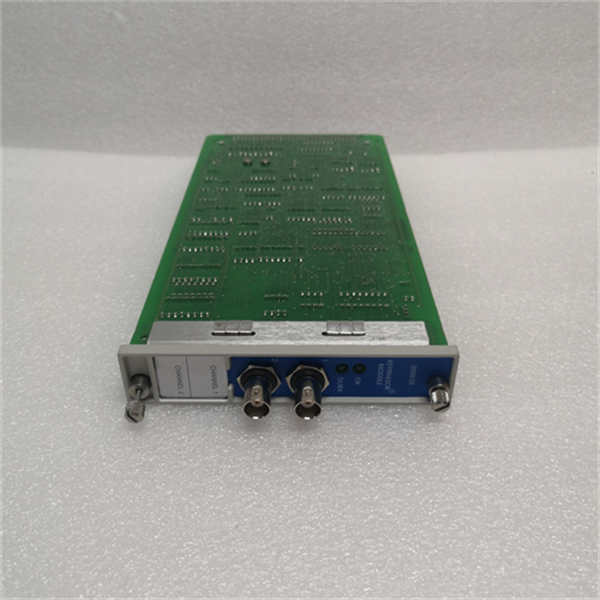

BENTLY 350025

Description

Parameter Specifications

Power Supply: -24 VDC, 40 mA maximum per channel.
Power Consumption: 3.2 watts typical.
Input Signal Range: +0.8 V to -21.0 V (non-isolated I/O modules); +5 V to -11 V (isolated I/O modules).
Output Impedance: 504 Ω maximum buffered output impedance.
Channels: 2-channel.
Operating Temperature: -30°C to 85°C.
Dimensions: 4.72 in x 0.96 in x 10.10 in.
Weight: 0.46 kg.

Applications

Petrochemical Industry: It is used to monitor the shaft position and vibration of pumps, compressors and turbines in petrochemical plants.
Power Generation: In power plants, it monitors the operation of generators and turbines, providing keyphasor signals for speed and phase measurement.
Metallurgical Industry: Applied in metallurgical equipment like blast furnace blowers and rolling mills to monitor equipment condition.

Features

High-Precision Measurement: Utilizes advanced sensor technology and signal processing algorithms for accurate measurement.
Trend Analysis: Continuously records and analyzes parameter trends over time to detect potential faults.
Multi-parameter Monitoring: Besides vibration and position, it can monitor other parameters like temperature.
Remote Monitoring: Enables remote access to measurement data via industrial communication protocols.

Stability and Reliability

Rugged Design: Can withstand heavy mechanical shock, surges and corrosive environments.
Advanced Diagnostics: Performs high-resolution spectral analysis to locate fault frequencies.
Scalability: Can be easily integrated and expanded with other modules in the 3500 series.

Practical Case

In a large petrochemical plant, the BENTLY 3500/25 is used in the rotating equipment monitoring system. It monitors the vibration and shaft position of a key compressor. Once, during operation, it detected abnormal vibration signals in advance. Through trend analysis and accurate measurement, maintenance personnel were able to quickly identify loosening of some internal components. Thanks to the 3500/25’s reliable performance, timely maintenance was carried out, avoiding a potential breakdown that could have led to production shutdowns and huge economic losses.
