Bently Nevada 3500/93 Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions
Parameters:

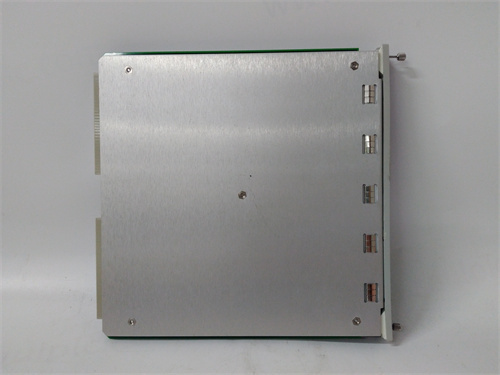

The Bently Nevada 3500/93 TSI (Turbine Supervisory Instrumentation) system monitor module is designed to monitor critical parameters of turbines and other rotating machinery.
Key parameters monitored include vibration, displacement, speed, pressure, key phase, and expansion differences.
Specifications:
The 3500/93 module provides continuous online monitoring, suitable for mechanical protection applications.
It collects data from sensors and compares it with alarm points, sending alerts when necessary.
Modules within the 3500 framework feature hot-swapping and internal/external terminals for easy replacement and connection.
Dimensions and Weight:
The dimensions of the 3500/93 monitor module are approximately 241.3 mm x 24.4 mm x 241.8 mm (9.50 inches x 0.96 inches x 9.52 inches).
The weight of the module is typically around 1.5kg.
Series:
The Bently Nevada 3500/93 belongs to the Bently Nevada 3500 series of monitoring and protection systems for industrial machinery.
Features:
Versatility: The 3500/93 module can be configured to monitor a range of parameters, allowing it to adapt to different machinery and applications.
Flexible Installation: The monitor module offers multiple installation options, including front-mounted, 19-inch rack-mounted, panel-mounted, and standalone configurations.
High Accuracy: The module’s high-precision sensors and signal conditioning ensure accurate measurements and reliable alarms.
Integration: The 3500/93 integrates seamlessly with other components of the 3500 system and industrial automation systems.
Functions/Role:
Protective Monitoring: The 3500/93 continuously monitors the health and performance of turbines and rotating machinery, detecting any abnormalities or impending failures.
Data Analysis: By collecting and analyzing data from sensors, the module provides operators with insights into machine behavior and performance trends.
Alarm Generation: If any monitored parameter exceeds its pre-set limit, the module generates alarms to notify operators of potential issues.
Predictive Maintenance: Through continuous monitoring, the 3500/93 can help identify patterns that indicate wear or degradation, enabling predictive maintenance strategies.
