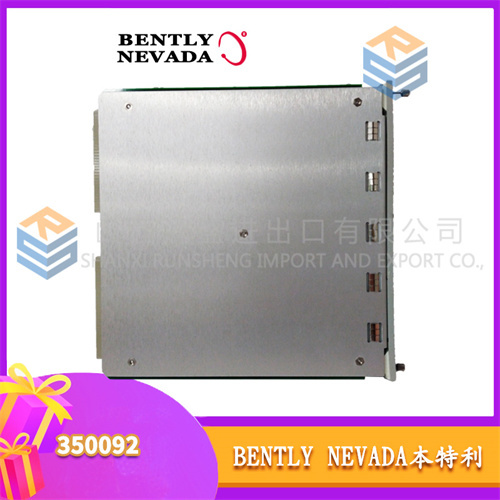

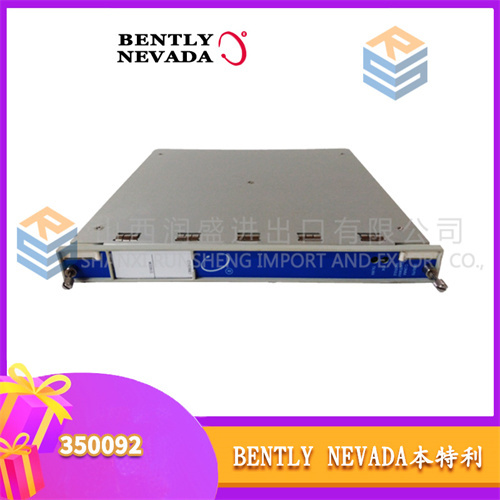

BENTLY 3500/92

Description

argument
Part number: 3500/92
Manufacturer: Bently Nevada
Product type: Communication gateway module
Power consumption:
Modbus RS232/RS422 I/O module: The typical value is 5 watts
Modbus RS485 I/O module: The typical value is 5.6 watts
specification
Series: 3500 series
Functional safety: SIL 2
Country of Manufacture: USA (USA)
Size and weight
Dimensions: 241mm x 24.4mm x 242mm (H x W x D)
Weight: 0.82 kg
trait
Communication capabilities: Provides a wide range of serial (RS232/RS422/RS485) and Ethernet TCP/IP communication capabilities for integrating all rack monitoring values and status with process control and other automation systems.

Supported protocols:
Modicon Modbus protocol (via serial communication)
Modbus/TCP protocol (Serial Modbus variant for TCP/IP Ethernet communication)
Proprietary Bently Nevada protocol (for communication with 3500 rack configuration and data acquisition packages)
Configurable Modbus register functionality: provides the same functionality as the initial value register, allowing users to flexibly configure registers.
Ethernet connection: For 10BASE-T star configuration Ethernet, the Ethernet connection is an RJ45 connection.
Data Type: Use a high-speed internal network to collect information from other modules in the rack, including time-stamped current measurements, module status, and current alert status.
Output: OK LED indicates when the module is working properly.
effect
System integration: BENTLY 3500/92, as a communication gateway module, is able to integrate all rack monitoring data and status with process control and other automation systems to achieve centralized data management and monitoring.
Data acquisition and analysis: Through the collection and processing of various data, such as the current measurement value, module status and alarm status, etc., to provide an important basis for equipment health analysis and optimization.
Equipment communication and control: Support Ethernet communication with 3500 framework configuration software and data acquisition software, as well as communication and control with other industrial equipment, such as frequency converters, PLC systems, etc.
