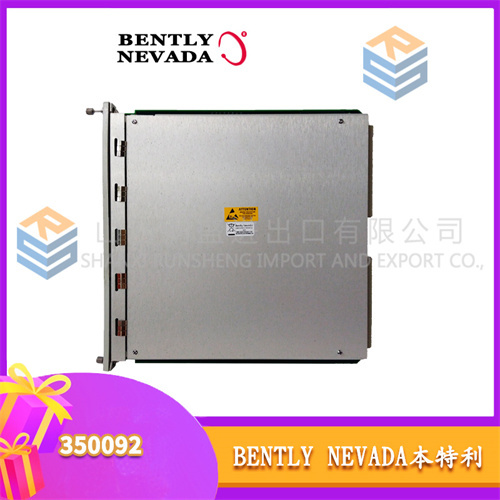

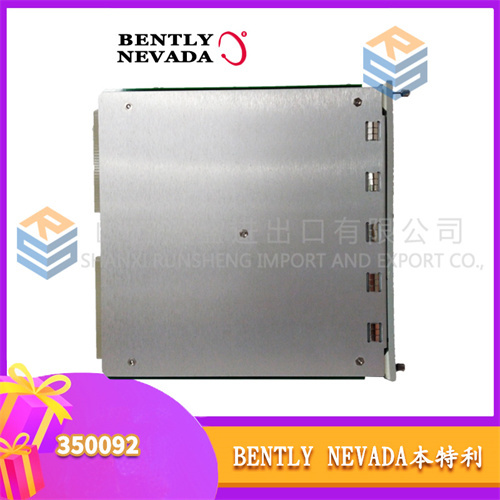

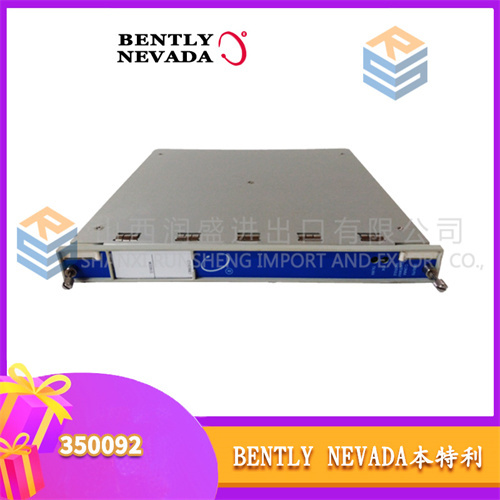

Bently Nevada 3500/92 Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions
Parameters:
The Bently Nevada 3500/92 is a communication gateway module specifically designed for industrial automation systems.
It provides extensive communication capabilities, including serial (RS232/RS422/RS485) and Ethernet TCP/IP interfaces.
Specifications:
The 3500/92 module is capable of integrating all monitoring values and status from various racks with process control and other automation systems.
It supports multiple protocols, including Modicon Modbus (via serial communication), Modbus/TCP (for TCP/IP Ethernet communication), and the proprietary Bently Nevada protocol.
The module consumes typical power values of 5.0 watts for Modbus RS232/RS422 I/O modules and 5.6 watts for Modbus RS485 I/O modules.
Dimensions and Weight:
The dimensions of the 3500/92 module are approximately 241 mm x 24.4 mm x 242 mm (height x width x depth).
The weight of the module is 0.82 kg.
Series:
The Bently Nevada 3500/92 belongs to the Bently Nevada 3500 series of industrial monitoring and control products.
Features:
Extensive Connectivity: The 3500/92 offers a wide range of communication interfaces and protocols, facilitating seamless integration with various devices and systems.
Configurable Modbus Register: It features a configurable Modbus register function, which provides the same functionality as the initial value register.
LED Status Indicators: The module includes LED status indicators, such as OK LED and TX/RX LED, for displaying the module’s working status and communication conditions.
Compatibility and Flexibility: The 3500/92 has the same communication interfaces, protocols, and other characteristics as the 3500/90 module, offering compatibility and flexibility in industrial automation systems.
Functions/Role:
Communication Gateway: The primary function of the 3500/92 is to act as a communication gateway, bridging the gap between monitoring systems and control/automation systems.
Data Collection and Integration: It collects and integrates data from various racks and modules, providing a unified view of the system’s status and performance.
Industrial Applications: The module is suitable for various industrial applications, including large-scale machinery monitoring, protection, and control.
