Description
Basic functions :

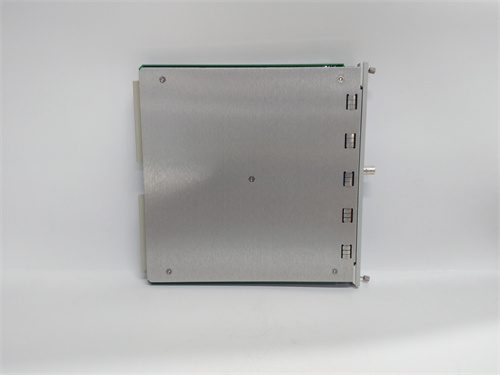

overspeed inspection : Bently 3500/53 is an electronic overspeed inspection system specially designed for 3500 series mechanical inspection systems, which provides a tachometer system with high reliability and fast response, and is the ideal choice of overspeed protection system
Key parameters :
signal input : Accepts a signal from the proximity probe sensor or magnetic pickup in the range + 10.0V to -24.0V
input impedance : 20 kΩ; Typical power consumption is 8.0 Watts
sensor support : Supports a variety of Bently Nevada sensors, including 3300 series, 7200 series,
output impedance : 550Ω; Sensor power supply is 24V DC, maximum 40 MA
Front panel LED indicator :
Including OK LED, TX/XR LED, bypass LED, test mode LED, alarm LED, respectively indicating different states
Environmental and physical specifications :
Operating temperature : -30°C to +65°C; Storage temperature: -40°C to +85°C
Dimensions and weight : Dimensions and weights are not specifically mentioned but are designed for use in industrial environments
Installation and configuration :
Supports 19-inch EIA frame or 12-inch mini frame installation, there are two ways of panel mounting and frame mounting
The Bently 3500/53 provides a strong guarantee for mechanical safety with its high performance and reliability
