Description

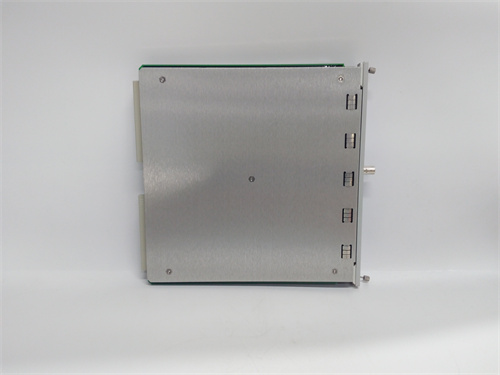

Bently Nevada 3500/53 is a highly reliable and advanced electronic overspeed detection system designed for industrial applications. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Signals: Each overspeed detection module accepts signals from either a vortex sensor or a magnetic sensor. The input signal range is +10.0V to -24.0V, and signals超出this range are limited within the module.
Compatible Sensors: The system is compatible with various sensors, including Bently Nevada 3300 8mm vortex sensors, 3300 16mm high-temperature vortex sensors, 7200 5mm, 8mm, 11mm, and 14mm vortex sensors, 3300 RAM vortex sensors, and magnetic sensors.
Power Requirements: The system requires a 24VDC working voltage.
Alarm Settings: It allows users to set both under-speed and over-speed alarm levels, as well as critical (overspeed) settings. All alarm settings are configurable through software.
Communication Interface: It supports RS-485 communication with a communication rate of up to 9600bps.
Dimensions and Weight:
Dimensions: The approximate dimensions of the module are 120mm x 80mm x 40mm.
Weight: It typically weighs around 0.5kg.
Series:
The Bently Nevada 3500/53 belongs to the 3500 series of monitoring and protection systems, which are renowned for their reliability and performance in industrial applications.
Features:
High Reliability: The system provides a highly reliable and fast response to ensure the safety of monitored equipment.
Redundant Power Supply: It is equipped with a redundant power supply to ensure continuous and stable operation.
Configurable Alarming: The alarm settings can be easily configured to meet specific application requirements.
Monitoring Capability: It provides continuous online monitoring of critical equipment, such as turbines, motors, pumps, and other rotating machinery.
Functions and Applications:
Overspeed Detection: The primary function of the Bently Nevada 3500/53 is to detect overspeed conditions in rotating equipment, triggering alarms to prevent potential accidents.
Protective Measure: It serves as a vital component of a machine protection system, helping to ensure the safe and efficient operation of industrial equipment.
Integration with Other Systems: Its communication capabilities allow for seamless integration with other automation systems, enabling centralized monitoring and control.
