Description

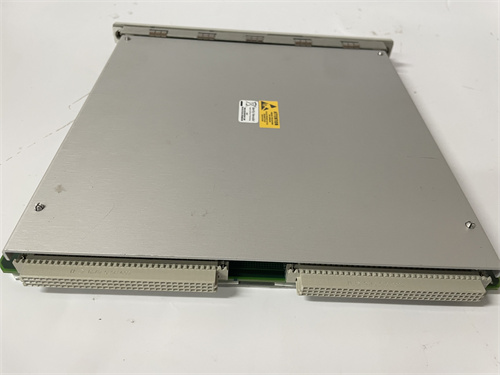

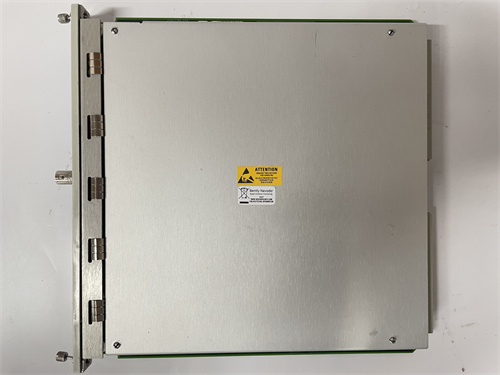

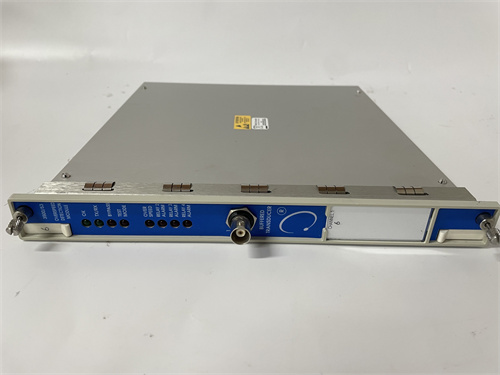

Bently Nevada 3500/53 Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions
Parameters and Specifications:
Input Signal Range: Each overspeed detection module of the Bently Nevada 3500/53 receives input signals from a vortex sensor or magnetic sensor, with the input signal range being +10.0V to -24.0V. If the signal exceeds this range, it is limited within the module.
Compatible Sensors: The module is compatible with various sensors, including Bently Nevada 3300 8mm and 16mm vortex sensors, 7200 5mm, 8mm, 11mm, and 14mm vortex sensors, 3300 RAM vortex sensors, and magnetic sensors.
Power Consumption: Typically, the power consumption is 8.0W.
Alarm Settings: The module allows for the setting of alarms for both under-speed and over-speed conditions, with adjustable alarm thresholds and time delays.
Dimensions and Weight:
The specific dimensions (length, width, height) and weight of the Bently Nevada 3500/53 are not provided in the available resources. It is recommended to consult the official documentation or contact the manufacturer for accurate measurements.
Series:
The Bently Nevada 3500/53 belongs to the Bently Nevada 3500 series of industrial monitoring and control products.
Features:
Redundancy: The 3500 framework requires redundant power supplies for increased reliability.
Alarm Configurability: The module allows for the configuration of alarm settings, including both under-speed and over-speed alarms, with adjustable thresholds.
Output Values: The module provides proportional output values for monitoring the mechanical speed of the equipment.
Functions/Role:
Overspeed Protection: The 3500/53 serves as a critical component in overspeed protection systems, ensuring that rotating equipment does not exceed safe operational speeds.
Monitoring and Alarming: It continuously monitors the speed of the rotating equipment and triggers alarms when preset speed thresholds are exceeded, thus preventing potential damage or failures.
Integration with 3500 Series: As part of the 3500 series, the 3500/53 module seamlessly integrates with other components of the system, providing a comprehensive solution for industrial monitoring and control applications.
Please note that the specifications, dimensions, and features provided here are based on generally available information. For the most accurate and up-to-date information, it is recommended to consult the official documentation or contact the manufacturer directly.
Warning: When working with industrial automation equipment, it is crucial to follow the manufacturer’s instructions and safety guidelines. Incorrect installation or operation may result in equipment damage or personal injury. Always ensure that personnel are properly trained and qualified to work with such equipment.
