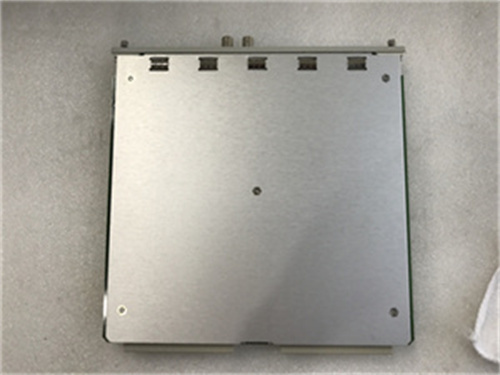

BENTLY 3500/50-01-00

Description

The specifications of the BENTLY 3500/50-01-00 are as follows:

Number of channels: 2 channels
Receive signal: Receive input from a proximity probe or magnetic sensor
Measurement function: Determine shaft speed, rotor acceleration or rotor direction
Alarm function: The measured value is compared to a user-programmable alarm setting point and an alert is generated when the setting point is violated
Programming method: Use 3500 rack configuration software for programming
Input signal range: +10.0V to -24.0V
Input impedance: 20kΩ (standard); 40kΩ (TMR); 7.15kΩ (Internal barrier)
Power consumption: 5.8W (typical)
Front panel LED: OK, TX/RX, Bypass
Output impedance: 550Ω

The features of BENTLY 3500/50-01-00 are as follows:

Dual channel design. The monitor has two independent channels and can simultaneously monitor messages in two different locations
Measuring function. Shaft speed, rotor acceleration, or rotor direction can be determined
Alarm function. The measured values are compared to user-programmable alarm set points and alerts are generated when the set points are violated
