Description

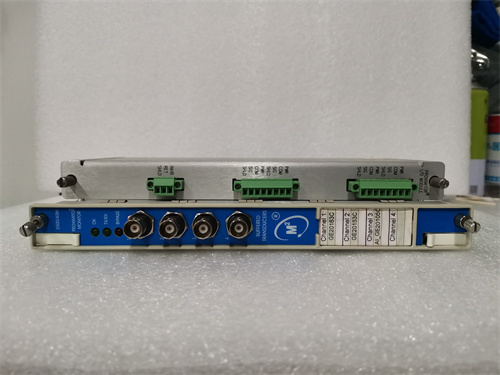

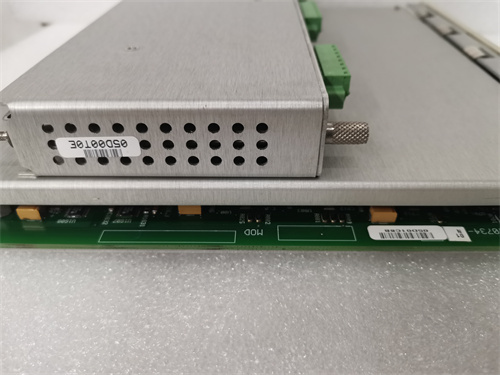

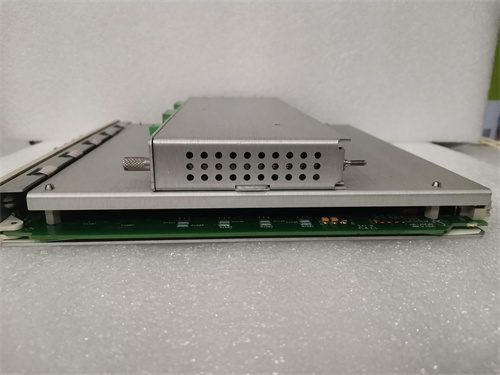

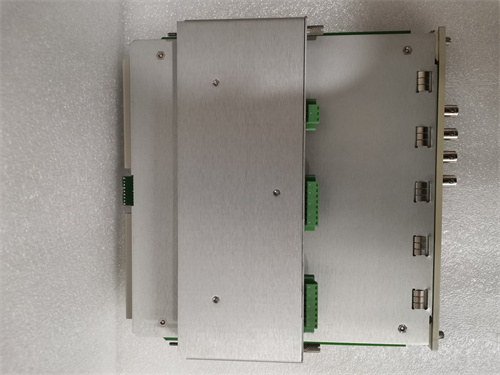

Bently Nevada 3500/46M is a highly specialized monitoring module designed for industrial applications, particularly for the monitoring and protection of rotating machinery. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Channels: It is a four-channel monitor that accepts inputs from various sensors, including displacement sensors and 3500 stator-mounted air gap sensors (SMAG).
Signal Processing: The module processes the input signals to obtain vibration and displacement information, comparing it with user-programmable alarm settings.
Sampling Rate and Resolution: It offers a sampling rate of 102.4 kSPS and a resolution of 24 bits.
Sensor Compatibility: Compatible with sensors such as accelerometers, velocity sensors, displacement sensors, and temperature sensors.
Temperature Range: Operates within a temperature range of -50°C to 100°C.
Dimensions and Weight:
Dimensions: The approximate dimensions of the module are 3.9 x 16.8 x 22.1 cm (length x width x height).
Weight: It typically weighs around 0.5 kg, but please note that this may vary slightly based on the specific configuration and accessories.
Series:
The Bently Nevada 3500/46M belongs to the 3500 series of products, which is renowned for its advanced vibration monitoring and protection systems.
Features:
Multi-Channel Monitoring: Its four-channel design allows for simultaneous monitoring of multiple parameters.
Alarm and Fault Detection: It continuously compares monitored data with preset alarm thresholds to trigger alarms for potential issues.
Versatility: It supports a wide range of sensors, making it suitable for various monitoring applications.
Communication Capabilities: Supports communication interfaces such as RS-485 and Ethernet for data exchange and integration with other systems.
Configurable and Programmable: Each channel can be programmed using the 3500 framework configuration software.
Functions and Applications:
Vibration and Displacement Monitoring: It is primarily used to monitor vibration levels and displacements in rotating machinery, such as turbines, motors, and pumps.
Fault Prevention and Maintenance: By detecting changes in vibration and displacement patterns, it helps to identify potential mechanical faults or issues, enabling proactive maintenance measures.
Machine Protection: The module’s alarm functionality contributes to the protection of the monitored machinery by alerting operators to potential issues.
Enhanced Operational Efficiency: By continuously monitoring the health of rotating equipment, it helps to maintain operational efficiency and reduce downtime.
