Description
Parameters and specifications:
Type: 4 channel monitor
Input signals: Accepts input signals from approach eddy current sensors, rotary position sensors (RPT), DC linear variable differential converters (DCLVDT), AC linear variable differential converters (AC LVDT) and rotary potentiometers
Measurement types: including axial (lateral) position, differential expansion, standard single bevel differential expansion, non-standard single bevel differential expansion, double bevel differential expansion, compensation differential expansion, shell expansion and valve position
Alarm point setting: The value measured by the monitor can be used as the alarm point, usually can be arbitrarily set in the range of 0 to 100% of the full scale of the respective measurement value
Size and weight:
Dimensions: Dimensions (H x W x D) : 241.3 mm x 24.4 mm x 241.8 mm (9.50 inches x 0.96 inches x 9.52 inches)
Weight: 0.91 kg (2.0 lb)
Series:

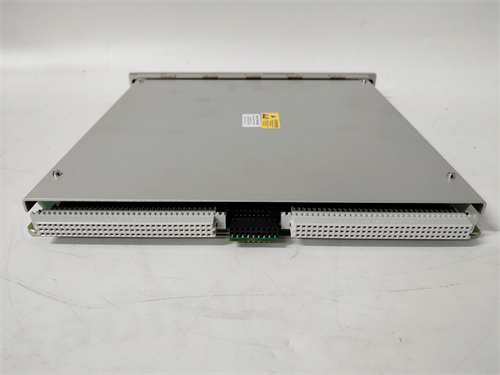

The BENTLY 3500/45 belongs to BENTLY NEVADA’s 3500 series.
Features:
Versatility: Multiple monitoring channels enable measurement and alarm functions in a variety of mechanical protection applications.
Programmability: With the 3500 Framework configuration software, users can program the functionality of each channel as needed.
Serial port microcontroller: Supports USB to RS485 conversion, provides an easy-to-use RS485 interface, and supports a variety of operating systems.
Signal conditioning: The input signal is preprocessed and the adjusted signal is compared with the user programmable alarm.
LED indicator: LED indicator on the front panel for real-time monitoring of machine status.
Functions:
The main role of BENTLY 3500/45 is to provide continuous, online monitoring of mechanical protection, providing important information for early identification of mechanical failures.
By continuously comparing the monitored parameters with the set alarm point and driving the alarm, the mechanical protection function is provided.
Provides operators and maintenance personnel with basic machine information to help them understand the health of the equipment.
