Description
BENTLY 3500/45 Parameters, Specifications, Dimensions, Weight, Series, Features, and Applications (English)
Parameters and Specifications:

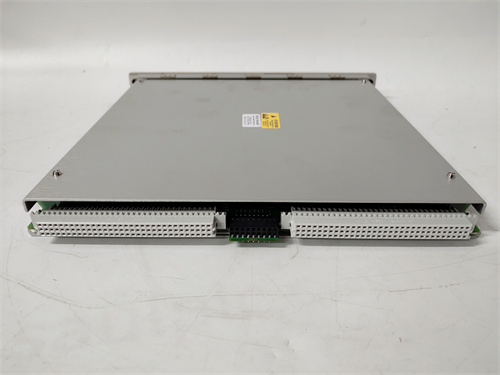

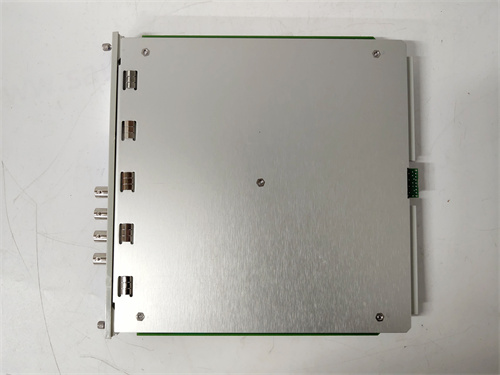

Model: Bently 3500/45 Position Monitor.
Channels: A 4-channel instrument capable of accepting inputs from various sensors.
Accepted Inputs: Proximitor, RPT, DC LVDT, AC LVDT, and rotary potentiometers.
Sensitivity (Thrust): 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
Differential Extension: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil).
Sensor Power: Proximitor or RPT: -24 VDC; DC LVDT: +15 VDC; AC LVDT: 2.3Vrms 3400Hz sinusoidal wave.
Dimensions and Weight:
Dimensions: 241.3 mm x 24.4 mm x 241.8 mm (9.50 inches x 0.96 inches x 9.52 inches).
Weight: 0.91 kg (2.0 pounds).
Series:
Part of the Bently series of industrial monitoring and control equipment.
Features:
Versatile Input Support: Accepts inputs from multiple types of sensors, providing flexibility in monitoring various parameters.
Signal Conditioning: The monitor conditions the input signals and compares them with user-programmable alarms.
Programmable via Software: Allows users to program each channel for specific functions using the 3500 Rack configuration software.
Alarm Capabilities: Provides continuous comparison of monitored parameters with configured alarm setpoints to trigger alarms, protecting machinery and personnel.
LED Indicators: Front panel LED indicators assist in real-time monitoring and indicate the status of the machine.
Applications:
The Bently 3500/45 position monitor is designed for industrial automation and control applications, particularly in monitoring and controlling the position or thrust of rotating or linear actuators. It finds applications in various industries where precise position monitoring is critical, such as in power generation, manufacturing, and process control systems.
