Description

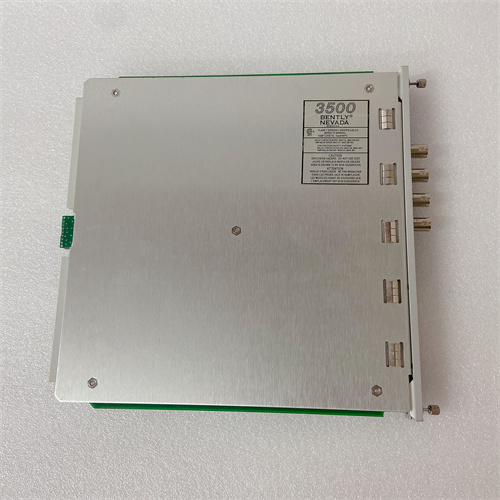

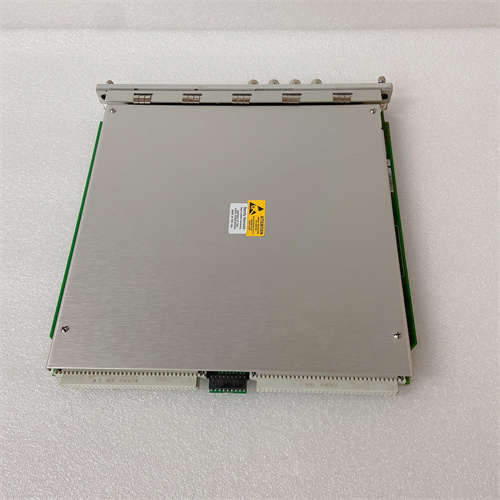

BENTLY 3500/40M Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions (in English)
Parameters:
Input Voltage Range: Typically, 18 VDC to 60 VDC.
Input Current Range: 1 mA to 32 mA.
Output Voltage Range: 1 VDC to 24 VDC.
Output Current (Max): 100 mA.
Accuracy: ±0.5% of full scale.
Linearity: ±0.25% of full scale.
Response Time: ≤500 μs.
Specifications:
Operating Temperature Range: -40°C to +85°C.
Humidity: 95%, non-condensing.
Type: Four-channel monitor.
Dimensions and Weight:
Dimensions (Approximate): 1/2″ x 1-1/2″ x 3/4″.
Weight: 2KG (approximate).
Series:
BENTLY 3500/40M belongs to the BENTLY Nevada 3500 series of industrial automation components.
Features:
Multi-Channel Monitoring: The 3500/40M monitor accepts input from Bently Nevada proximity sensors and regulates the signals to provide various vibration and position measurements.
Programmable Alarms: User-programmable alarms can be set for each channel to compare with the regulated signals for monitoring purposes.
Flexible Programming: With the 3500 rack configuration software, users can program each channel of the 3500/40M to perform functions such as radial vibration, thrust position, differential expansion, eccentricity, and rebam.
Alarm Settings: Users can set alarm and danger setpoints for each monitored parameter, allowing for precise control and fault detection.
Functions/Role:
Signal Processing and Monitoring: Converts and processes input signals from sensors, providing crucial vibration and position data for mechanical equipment.
Fault Detection and Prevention: Helps detect potential faults in rotating machinery, allowing for timely maintenance and enhanced operational reliability.
System Integration: Integrates seamlessly into the 3500 rack system, providing critical data for machine health monitoring and protection.
