Description

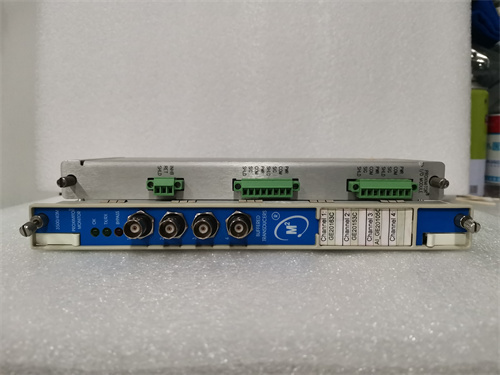

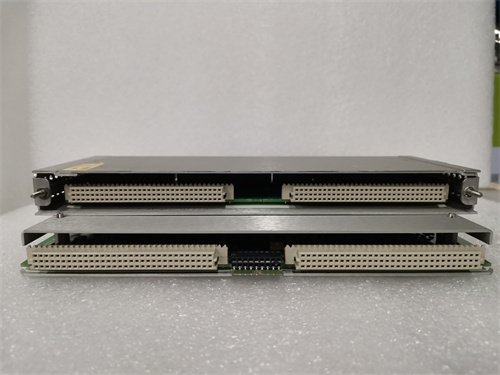

The BENTLY 3500/40-01-00 is a sophisticated monitoring module primarily used for vibration monitoring and analysis in industrial applications. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Type: It accepts input from displacement sensors, specifically designed to work with Bently’s Proximitor sensors.
Channels: The module has 4 channels, which can be paired and configured to perform various functions such as radial vibration, axial displacement, difference expansion, shaft eccentricity, REBAM, and rolling bearing vibration measurements.
Output Type: It provides analog output signals, typically in the range of 4-20 mA, for further processing or integration with other systems.
Power Supply: Typically requires a 24 VDC power supply.
Operating Temperature Range: -40°C to +70°C for operation and -40°C to +85°C for storage.
Dimensions and Weight:
Dimensions: Exact dimensions may vary slightly depending on the manufacturer and model, but it is typically designed for DIN rail mounting.
Weight: The weight will also depend on the specific model and manufacturing variant. Exact weight specifications should be consulted from the manufacturer’s documentation.
Series:
The BENTLY 3500/40-01-00 belongs to the Bently 3500 series of monitoring and protection systems, which are widely used in various industrial applications.
Features:
Continuous Monitoring: The module provides continuous, online monitoring of mechanical equipment, enabling early detection of potential issues.
Alarm System Integration: It compares the measured vibration levels with programmable alarm settings, triggering alarms when thresholds are exceeded.
Configurable Channels: Each channel can be individually configured using software, allowing for flexibility in monitoring different types of vibrations and displacements.
Compatibility and Integration: The module is compatible with Bently’s monitoring framework and other components, facilitating seamless integration into larger monitoring systems.
Functions and Applications:
Vibration Analysis: The module analyzes vibration data from rotating machinery, such as turbines, compressors, and pumps, to detect changes in mechanical condition.
Fault Detection: It helps identify faults in bearings, gears, and other critical components, allowing for proactive maintenance and reducing downtime.
Protective Measures: By triggering alarms, the module can initiate protective measures such as shutdowns or slowdowns to prevent further damage to the equipment.
Please note that the specifications, dimensions, weight, and other technical details may vary slightly depending on the manufacturer, model, and application. It is always recommended to refer to the official documentation or contact the manufacturer directly for the most accurate and up-to-date information.
