Description

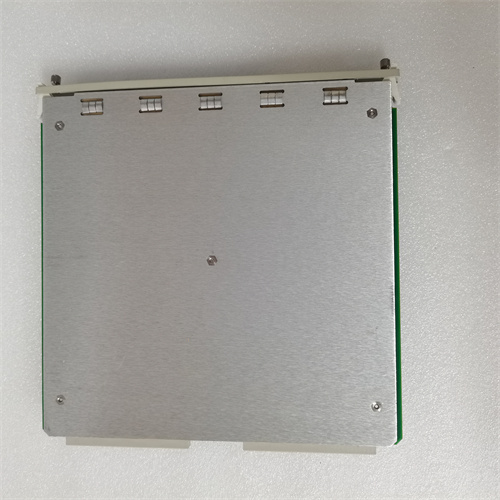

Bently Nevada 3500/33 is a 16-channel relay module designed for industrial monitoring and control systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Channels: The module provides 16 relay outputs.
Relay Type: Single Pole Double Throw (SPDT) relay.
Relay Contacts: Sealed with epoxy resin.
Relay Contact Life: 10,000 cycles.
Arc Suppression: 250 Vrms as standard installation.
Programming: Alarm drive logic can be programmed using AND and OR logic.
Compatibility:
Requires 3500 Rack Config version 3.3 or higher.
Needs data acquisition software version 2.40 or higher.
Requires 3500 data display software version 1.40 or higher.
Dimensions and Weight:
Dimensions: The module has a full-height front slot and measures approximately 220mm x 170mm x 85mm.
Weight: Approximately 5kg.
Series:
The Bently Nevada 3500/33 belongs to the 3500 series of products designed for industrial automation and monitoring applications.
Features:
Modular Design: The relay module can be easily inserted into the 3500 rack system.
Flexible Programming: Each relay output can be independently programmed to execute the desired voting logic.
Alarm Drive Logic: Each relay on the module has alarm drive logic that can be programmed using AND and OR logic.
LED Indicators: The module features LEDs for OK, TX/RX, and channel alarm status.
Environmental Sealing: The relay contacts are sealed with epoxy resin, providing environmental protection.
Functions and Applications:
Relay Functionality: The module provides relay functionality for various monitoring and control tasks in industrial settings.
Integration with 3500 System: It seamlessly integrates with the 3500 rack system, enabling centralized monitoring and control.
Fault Detection and Notification: Through its alarm drive logic and LED indicators, the module can detect faults and notify users via alarms.
Industrial Applications: It is suitable for use in various industrial applications, including energy, manufacturing, and port operations, where reliable relay functionality is crucial.
