Description

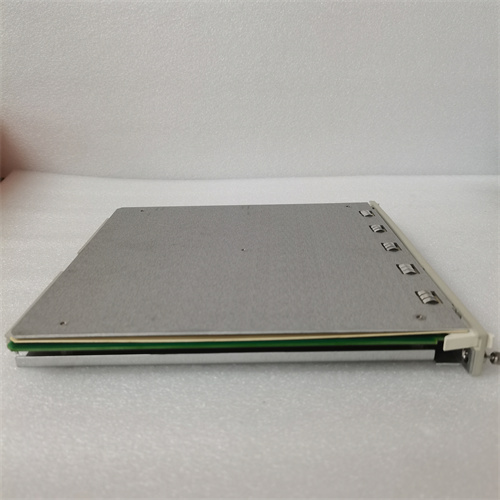

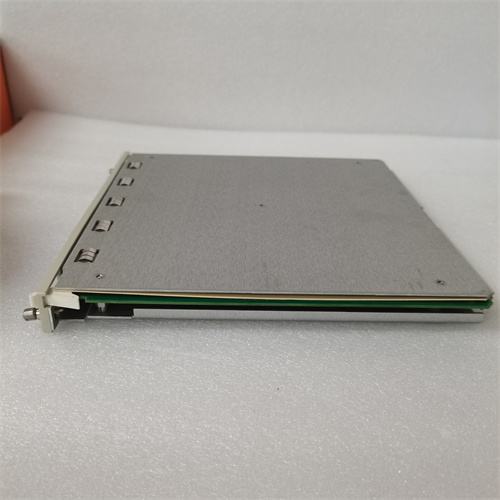

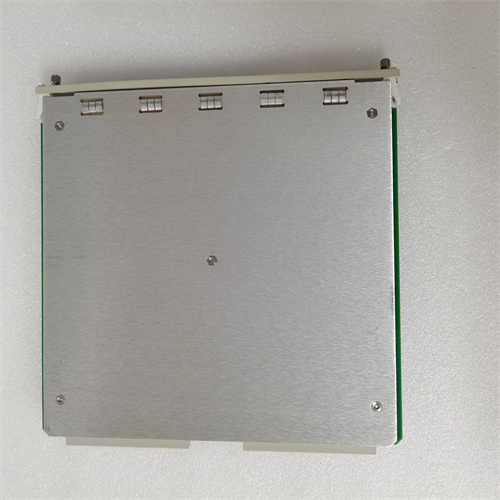

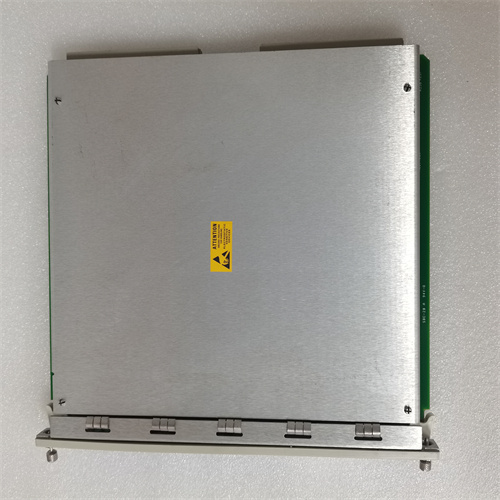

The Bently Nevada 3500/33 is a highly specialized and feature-rich module that finds extensive use in industrial automation and monitoring systems. Here’s a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Number of Relay Outputs: The 3500/33 module provides 16 relay outputs, making it a 16-channel relay module.
Input Power: Typically, it operates on 24V.
Current Range: It can handle currents ranging from 100-400A.
Compatibility: The module requires 3500 Rack Config version 3.3 or higher, data acquisition software version 2.40 or higher, and 3500 data display software version 1.40 or higher for optimal functionality.
Dimensions and Weight:
Dimensions: The module measures approximately 220mm x 170mm x 85mm.
Weight: It has a weight of 5kg.
Series:
The Bently Nevada 3500/33 belongs to the 3500 series of modules, which are known for their reliability and performance in industrial applications.
Features:
Versatility: The module can be positioned in any slot to the right of the TDI module, providing flexibility in system design.
Alarm Drive Logic: Each relay within the module incorporates alarm drive logic, allowing for programming with AND and OR logic.
LED Indicators: The front panel includes LED indicators for alarm control logic, OK status, and TX/RX communication status, providing visual feedback on the module’s operational status.
Power Options: It offers options for normal energized (NE) or normally de-energized (ND) relay operation.
Compatibility with Safety Systems: If the module is part of a functional safety (SIL) system, it supports voltage limitations for safety compliance.
Functions/Applications:
The Bently Nevada 3500/33 module is primarily used in industrial automation systems, particularly for monitoring and controlling critical equipment and processes.
It is often employed in scenarios where real-time monitoring and alarm notification are crucial, such as in industrial manufacturing, energy industries, and port operations.
Through its relay outputs, it can trigger alarms, shut down equipment, or activate other safety measures in response to detected anomalies or unsafe conditions.
