Description

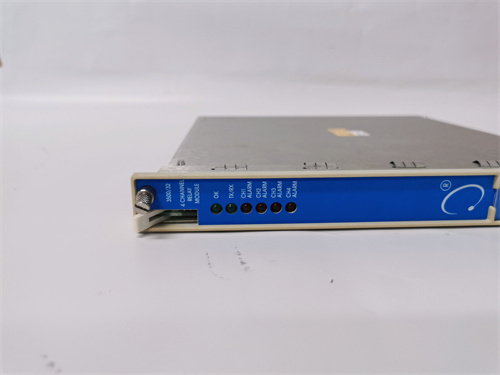

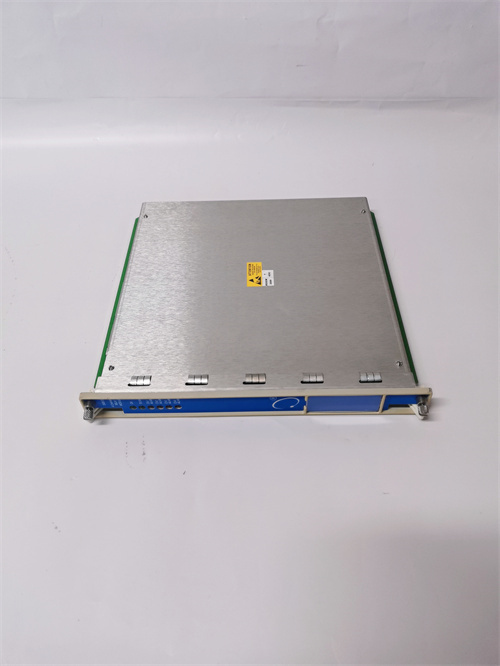

The Bently Nevada 3500/32 is a sophisticated module designed for industrial automation and mechanical condition monitoring. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Conversion Type: The module features an input for Sigma-Delta conversion.
Input Filtering: It provides programmable notch filters with multiple frequencies.
Common-Mode Rejection Ratio (CMRR): Selection of 10HZ or 50HZ filter offers a CMRR of 85dB at 50HZ, while 10HZ or 60HZ filter provides a CMRR of 85dB at 60HZ.
Nonlinearity and Repeatability: ±0.03% for both nonlinearity and repeatability.
Diagnostics: It provides bit-wise reporting for upper and lower limit exceedances, as well as open circuit detection.
Dimensions and Weight:
Dimensions: The module measures 138mm x 36mm x 145mm.
Weight: It weighs approximately 1.39kg (3.06lbs.).
Series:
The Bently Nevada 3500/32 belongs to the 3500 series of industrial automation and condition monitoring products.
Features:
Monitoring Capability: It can monitor the operational status of mechanical equipment, including vibration, temperature, and pressure parameters.
Alarming and Protection: The module issues alarms based on preset thresholds or conditions and initiates protective measures to prevent equipment damage or downtime.
Relay Outputs: It has relay output channels for triggering alarms, shutting down equipment, or executing other actions.
Communication Interface: It may feature communication interfaces such as Modbus or Ethernet for data exchange and communication with other devices or monitoring systems.
Programmability: The module supports user-defined parameters and logic for adaptability in different application scenarios.
Data Recording: It may have a data recording function to log equipment operational status and historical data for subsequent analysis and reporting.
Industrial Design: The module is designed to meet industrial standards, with features such as protection ratings and anti-interference capabilities, making it suitable for various industrial environments.
Functions and Applications:
Automation and Control: The 3500/32 module is a reliable choice for industrial automation, providing critical functions for system efficiency and stability.
PLC (Programmable Logic Controller) Applications: With its advanced solid-state switch technology, the module offers high reliability and low maintenance costs compared to traditional mechanical contactors.
Electrical Isolation: Its electrical isolation ensures stable and secure data transmission.
Diagnostics and Compatibility: It includes advanced diagnostic features and supports multiple communication protocols, allowing seamless integration with other devices and systems.
