Description

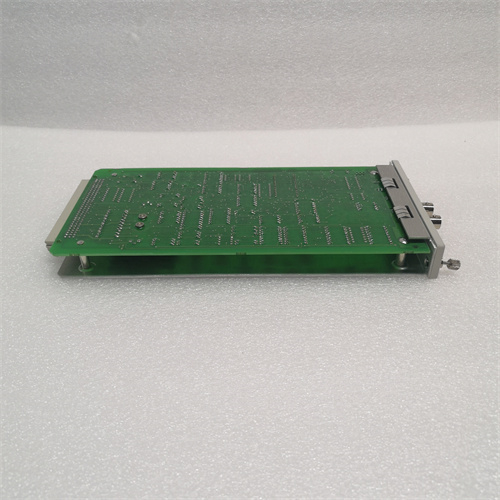

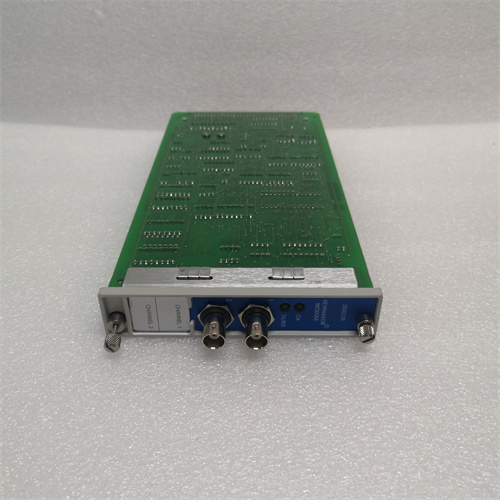

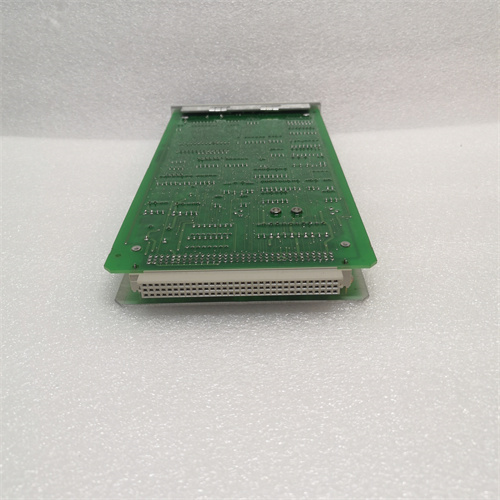

BENTLY 3500/25 Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions (in English)
Parameters:
Input Voltage Range: Typically, 18 VDC to 60 VDC.
Input Current Range: 1 mA to 32 mA.
Output Voltage Range: 1 VDC to 24 VDC.
Output Current (Max): 100 mA.
Accuracy: ±0.5% of full scale.
Linearity: ±0.25% of full scale.
Response Time: ≤500 μs.
Specifications:
Operating Temperature Range: -40°C to +85°C.
Size (Approximate): 1/2″ x 1-1/2″ x 3/4″.
Dimensions and Weight:
Exact dimensions and weight may vary based on the specific configuration and model. It is recommended to refer to the manufacturer’s official documentation for the most accurate information.
Series:
BENTLY 3500/25 belongs to the BENTLY 3500 series of industrial automation components, specifically designed for signal processing and monitoring applications.
Features:
Signal Conversion: Serves as a signal converter, converting analog or digital input signals to digital key phase signals.
Enhanced Keyphasor Processing: Provides expanded Keyphasor signal processing capabilities compared to previous designs.
Compatibility: Fully downward compatible with legacy Keyphasor modules for use in existing systems.
Monitoring Capability: Enables 3500 monitoring modules and external diagnostic tools to measure parameters such as shaft speed and vector characteristics like 1X vibration amplitude and phase.
Functions/Role:
Signal Processing: Processes input signals from sensors such as electromagnetic pickups or proximity probes to detect when a keyway mark on a rotating shaft aligns with a sensor.
System Integration: Integrates into the 3500 rack system, providing key phase signals to monitoring modules for precise timing measurements.
Fault Detection and Prevention: Contributes to the early detection of potential faults in rotating machinery, enabling timely maintenance and improved operational reliability.
