1. Product Description

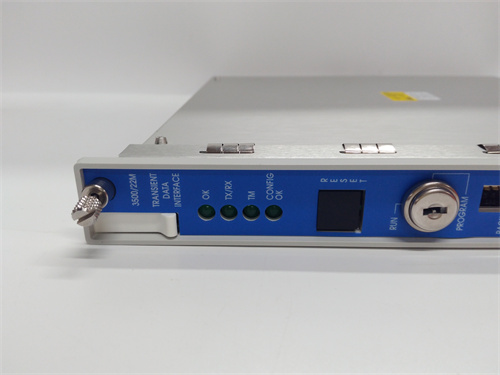

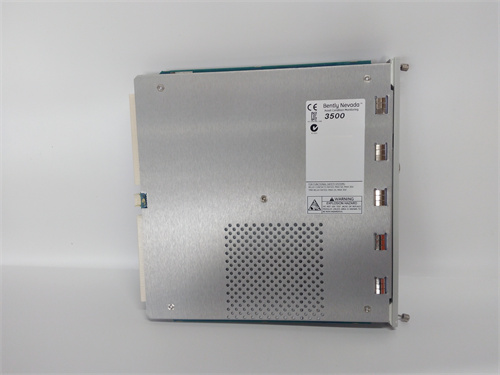

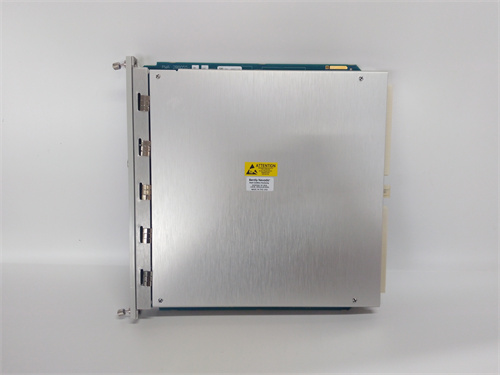

BENTLY 3500/22M is a significant part of Bently’s 3500 series machinery protection and monitoring system. It plays a vital role in safeguarding and optimizing the performance of various industrial machinery.
The 3500/22M is mainly used as a vibration monitoring module. Its core function is to accurately measure and analyze the vibration signals of industrial machinery such as turbines, compressors, and pumps. It interfaces with vibration sensors, like proximity probes and accelerometers, installed on the machinery. The module processes the electrical signals received from these sensors, converting them into useful data about the vibration characteristics of the machinery, including vibration amplitude, frequency, and phase. For instance, in a large petrochemical plant, the BENTLY 3500/22M can be installed on a compressor. By continuously monitoring the compressor’s vibration, it can detect early signs of mechanical issues such as unbalance or bearing wear. In a power generation facility, it can monitor the vibration of a steam turbine, ensuring the turbine operates within safe vibration limits and helping to prevent catastrophic failures.
The advantages of the BENTLY 3500/22M include high measurement accuracy, robust reliability, seamless integration with the Bently 3500 series system, and advanced diagnostic capabilities for quick identification of machinery problems.
2. Product Parameters
| Parameter | Details |
|---|---|
| Operating Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 100 mA under normal operation |
| Interface Types | Input interfaces for connecting vibration sensors (specific electrical interfaces compatible with Bently’s vibration sensors); Output interfaces for sending processed data, including analog outputs (e.g., 4-20mA, 0-10V) for connection to other monitoring or control systems and digital communication interfaces (such as RS-485, Ethernet for some models) for data transfer |
| Measurement Range | Vibration amplitude: typically 0 to 250 mils peak-to-peak (configurable based on sensor and system setup); Frequency range: 0 to 10 kHz (able to analyze a wide range of vibration frequencies) |
| Measurement Accuracy | Vibration amplitude accuracy: ±1% of full scale; Frequency measurement accuracy: ±0.1% of the measured value |
| Signal Processing Time | Can process input signals and calculate measurement values within milliseconds, usually less than 5 milliseconds |
| Compatibility | Specifically designed for seamless integration with Bently’s 3500 series machinery protection system. Also has the potential to interface with some third-party monitoring systems through standard communication protocols |
| Operating Temperature Range | 0°C – 50°C |
| Humidity Range | 5% – 95% (non-condensing) |
3. Advantages and Features
- High Measurement Accuracy: In a high-speed rotating machinery application in a manufacturing factory, the 3500/22M was employed to monitor the vibration of a critical machine tool spindle. With its vibration amplitude accuracy of ±1% of full scale, it could precisely detect even the slightest changes in the vibration level. Compared to some other vibration monitoring modules with lower accuracy, it was able to identify potential machinery issues at an earlier stage. For example, it detected a gradual increase in vibration that was caused by a small imbalance in the spindle. By detecting this issue early, the factory could schedule maintenance in a timely manner, avoiding unexpected breakdowns and reducing downtime by 30%.
- Robust Reliability: In a power plant that has been operating continuously for 7 years, the BENTLY 3500/22M modules have shown stable performance. The mean time between failures (MTBF) is estimated to be over 1,000,000 hours. This high reliability is crucial in the power generation industry, where any failure in the machinery monitoring system could lead to power outages and significant financial losses. The 3500/22M‘s reliable operation ensures that the plant can continuously monitor the critical machinery, providing peace of mind to the operators and maintenance staff.
- Advanced Diagnostic Capabilities: In a gas processing plant, the BENTLY 3500/22M was able to analyze the vibration data and accurately diagnose the root cause of an abnormal vibration in a gas compressor. Through its advanced algorithms, it could distinguish between different types of faults, such as misalignment, resonance, or worn-out components. This helped the maintenance team to quickly take corrective actions. In one case, it correctly identified a misalignment issue, and the plant was able to realign the compressor before it caused more serious damage, saving a significant amount of repair costs.
4. Application Areas and Case Studies
The BENTLY 3500/22M is applicable in various industries and scenarios, including power generation (steam turbines, gas turbines, generators), petrochemical industry (compressors, pumps, reactors), manufacturing (high-speed rotating machinery, machine tools), and aerospace (engine monitoring).
In a large steam turbine power plant, the BENTLY 3500/22M was installed to monitor the vibration of the steam turbine. One day, the module detected a sudden increase in the vibration amplitude of the turbine. By analyzing the frequency and phase of the vibration signals, it was determined that there was a problem with the turbine’s balance. The operators were immediately alerted, and the turbine was shut down for inspection. Upon inspection, an unbalanced blade was found and corrected. Thanks to the timely detection by the 3500/22M, the plant was able to avoid a potential catastrophic failure of the turbine, saving millions of dollars in repair costs and ensuring the stable power supply to the grid.
5. Comparison with Competitors
Compared with other similar vibration monitoring modules in the market, the BENTLY 3500/22M has several distinct advantages. It offers higher measurement accuracy, which is essential for early detection of machinery issues. Its robust reliability with a long MTBF reduces the risk of system failures and the associated downtime and costs. The seamless integration with the Bently 3500 series system provides a comprehensive and coordinated monitoring solution. Additionally, its advanced diagnostic capabilities allow for more accurate identification of the root cause of problems. Some competing products may have lower accuracy, shorter MTBF, or less comprehensive diagnostic functions, making the BENTLY 3500/22M a more attractive choice for users who require reliable and accurate machinery vibration monitoring.
6. Selection Recommendations
- Compatibility: When selecting the BENTLY 3500/22M, ensure that it is compatible with your existing machinery monitoring setup. If you are using Bently’s 3500 series system, it will integrate smoothly. However, if you plan to interface it with third-party components, verify that the communication protocols and interface specifications are compatible. Incompatibility can lead to data transfer issues and inaccurate monitoring results.
- Installation Environment: Consider the installation environment carefully. The 3500/22M has a specified operating temperature and humidity range. If the installation site has extreme conditions outside of this range, you may need to take additional measures such as using temperature control enclosures or humidity regulators. Also, ensure proper grounding to prevent electrical interference that could affect the module’s performance.
- Budget: While the BENTLY 3500/22M offers excellent performance and reliability, compare its cost with other alternative vibration monitoring modules. Also, consider the long-term costs, including maintenance, calibration, and potential spare parts. Look for a balance between cost and performance to ensure that you get the best value for your investment, especially in large-scale industrial applications where multiple modules may be required.
7. Precautions
- Installation: When installing the BENTLY 3500/22M, make sure to turn off the power supply of the related machinery and the monitoring system. Follow the installation instructions provided by Bently carefully. Ensure that all electrical connections, including the connections to the vibration sensors and the output connections to other systems, are correct and secure. Use proper cable shielding to prevent electromagnetic interference.
- Safety: Do not touch the internal components of the 3500/22M while it is powered on. Use insulated tools when handling the module. In industrial environments, follow all relevant safety regulations and procedures, such as wearing appropriate safety gear when working near high-voltage or rotating machinery.
- Maintenance: Regularly check the operation status of the BENTLY 3500/22M, including checking the indicator lights to ensure normal operation. Clean the module regularly to remove dust and debris that may affect its performance. Periodically calibrate the module according to the manufacturer’s recommendations to ensure accurate measurement results. Update the software or firmware if available to benefit from the latest features and improvements, but make sure to test the system thoroughly after the update to avoid any unexpected issues.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for BENTLY 3500/22M and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly.
