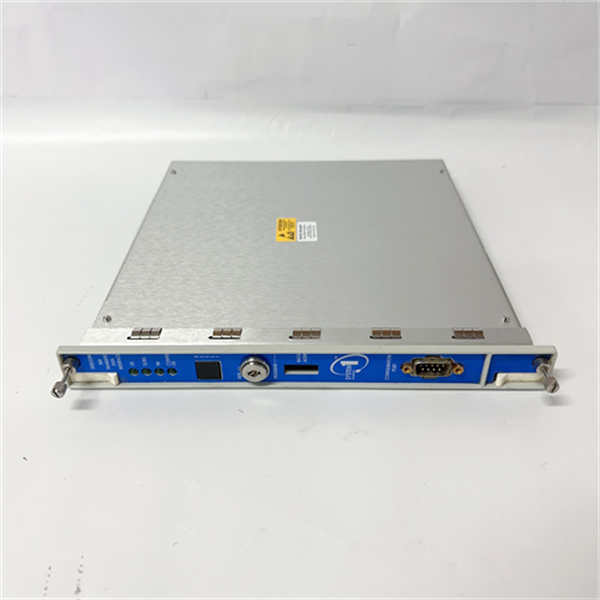

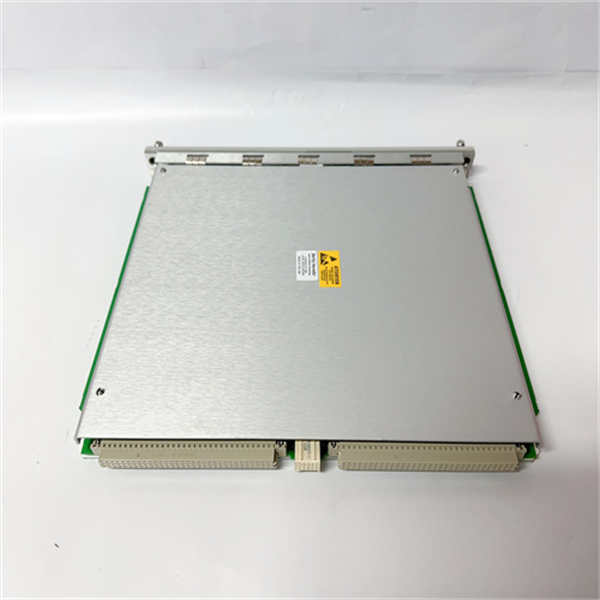

Bently 3500/22M

Description

1.‌Parameters and Specifications‌:
–‌Manufacturer‌: Bently Nevada (now part of GE Detection & Measurement)1
–‌Model‌: 3500/22M
–‌Series‌: 3500
–‌Input Signal Range‌: -10 Vdc to +10 Vdc2
–‌Power Consumption‌: 7.7 Watts (may vary)2
–‌Operating Temperature‌: 25°C (with a wider range possible, e.g., 1°C to 100°C for certain models)3

2.‌Dimensions and Weight‌:
–‌Dimensions‌: 9.50 x 4.50 x 1.00 inches2
–‌Weight‌: Approximately 0.85 pounds (other sources mention 0.2kg, likely model-specific)

3.‌Series‌:

• Belongs to the 3500 series of monitoring products from Bently Nevada
•

4.‌Features‌:
–‌Data Collection‌: Continuously collects steady-state and transient dynamic (waveform) data5
–‌Communication‌: Transmits data via Ethernet link to host software for remote monitoring and analysis51
–‌Flexibility‌: Supports optional channel enablement disks for recording dynamic, high-resolution transient data5
–‌Mode Switching‌: Enables switching between “RUN” and “PROGRAM” modes to prevent unwanted configuration changes25
–‌Compatibility‌: Works with 3500 monitoring systems and compatible software such as System 1 state monitoring and diagnostic software51

5.‌Functions‌:
–‌Industrial Monitoring‌: Primarily used in industrial monitoring scenarios, including rotating equipment monitoring, mechanical protection, asset condition monitoring, and vibration analysis
