Description

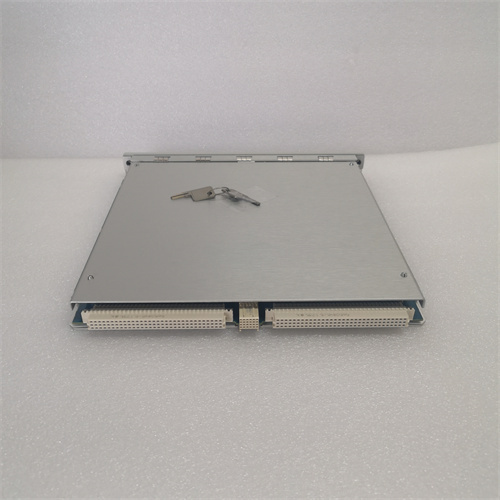

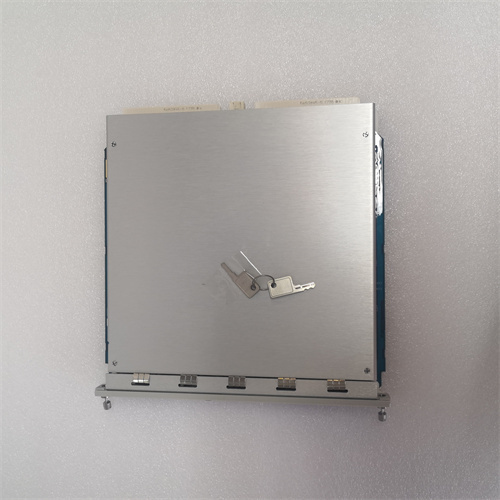

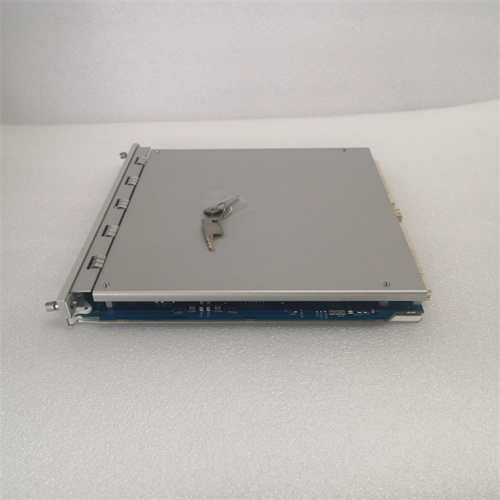

BENTLY 3500/22M-01-01-01 Parameters and specifications:
Type: Transient Data Interface Module.
Manufacturer: Bently Nevada.
Series: 3500 series.
Input signal: -10 Vdc to +10 Vdc.
Power consumption: 7.7 Watts.
Shaft and sensor power supplies: -24 Vdc.
Function: Interface to software compatible with 3500 monitoring systems, including System 1 status monitoring and diagnostic software and 3500 system configuration software.
Communication: Combine 3500/20 rack interface modules (RIM capabilities) with communication processors (such as TDXnet) to collect data.
Function: Continuously collect steady-state and transient dynamic (waveform) data and transmit this data to the host software over an Ethernet link.
Size and weight:
Size: May vary by specific model or version, but reference size such as 9.50 x 4.50 x 1.00 (units not specified, may be inches).
Weight: 0.85 LBS (for some models) or 2KG (for others).
Features:
Data collection: The ability to collect traditional static data and optionally record dynamic, high-resolution transient data.
System compatibility: Interaction with M-series monitors such as 3500/40M, 3500/42M, etc.
SOE feature: Reports status in event messages such as channel values, queue full, sync jitter, uncertain time, shutter filter activation, and channel errors.
Functions:
Mechanical condition monitoring: The BENTLY 3500/22M-01-01-01 is commonly used to monitor the condition of rotating and reciprocating machinery, detecting problems such as unbalance, misalignment, shaft cracks and bearing failures.
Continuous monitoring: Continuous monitoring of various parameters of the machine, such as speed, axial displacement, thermal expansion, bearing box vibration, phase recognition, etc.
