Description
Voltage: 24V
Power Consumption: 10.5 watts
Interfaces: USB-B front panel, 10Base-T or 100Base-TX Ethernet (adaptive), 100Base-FX fiber optic Ethernet
Dimensions: 170mm x 105mm x 32mm
Weight: 2KG
Series:

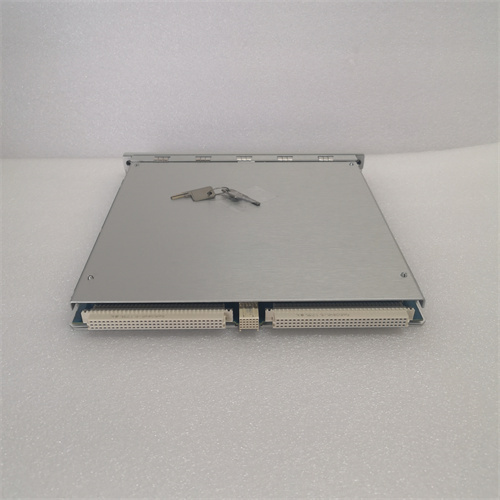

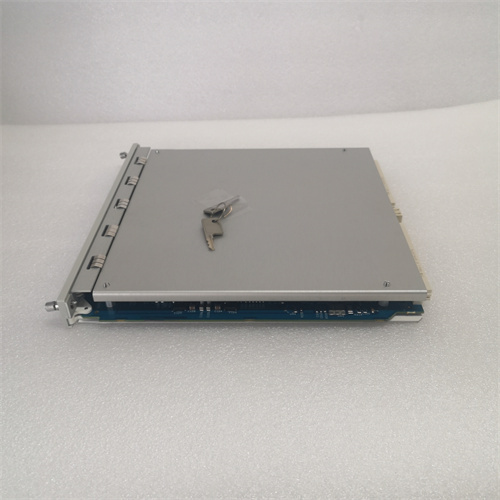

BENTLY 3500/22-01-01-01 belongs to the BENTLY 3500/22M TDI series, which includes various models such as 3500/22-01-01-00 and 3500/22-01-01-01.
Features:
Integrated Communication Processor Functionality: The TDI combines the functions of the 3500/20 Rack Interface Module (RIM) and communication processors like TDXnet.
Data Collection: It continuously collects steady-state and transient dynamic (waveform) data from M series monitors (3500/40M, 3500/42M, etc.) and transfers it to the host software via an Ethernet link.
Flexible Configuration: The TDI supports both standard and triple module redundant (TMR) configurations.
Monitoring Functions: In TMR applications, the TDI performs monitor voting functions, comparing the outputs of redundant monitors and indicating errors if they differ.
Functions:
The BENTLY 3500/22-01-01-01 TDI module serves as an interface between the BENTLY 3500 monitoring system and compatible software, such as System 1TM mechanical management software. It provides a common interface for the entire rack, integrating communication processor functionality and collecting data from various monitors. The TDI is not a part of the critical monitoring path and does not affect the correct and normal operation of the overall monitoring system.
