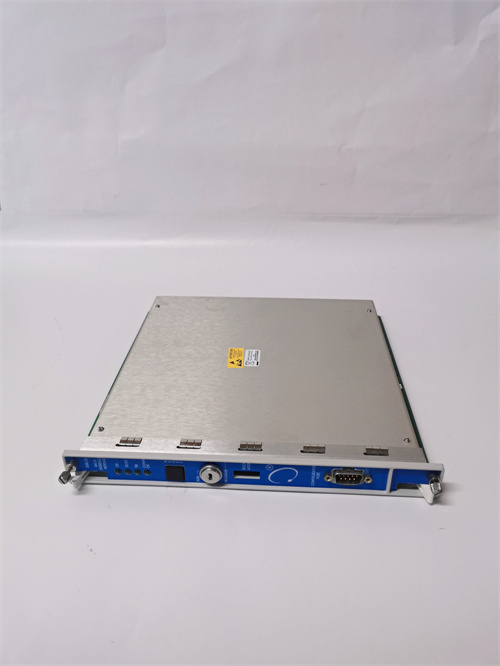

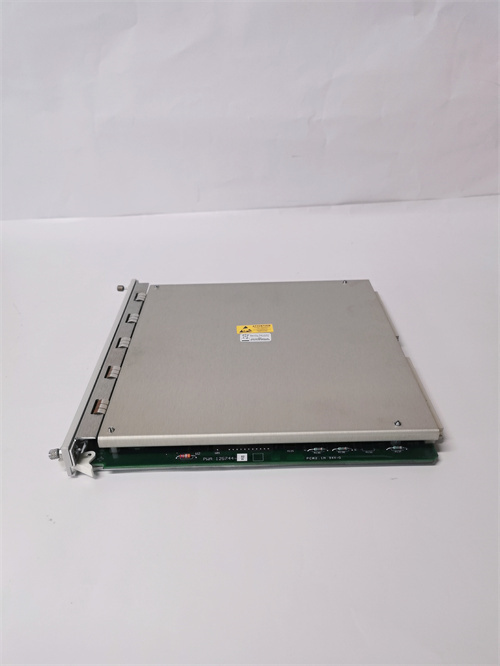

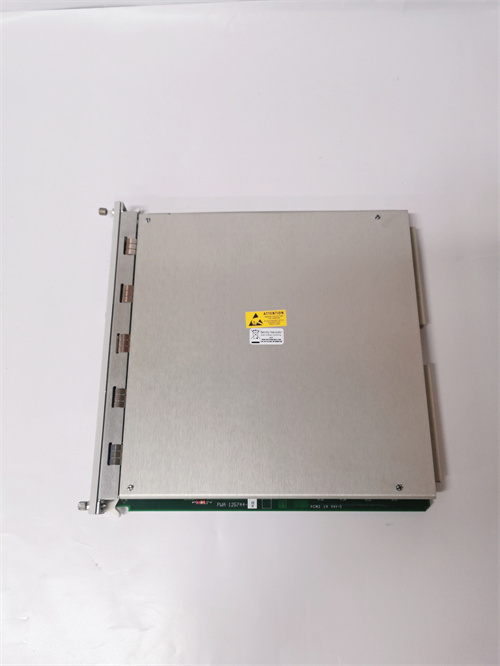

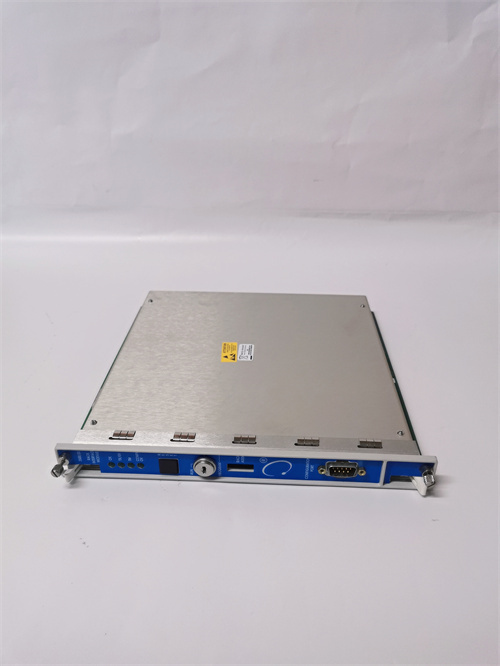

Bently Nevada 3500/20 Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions
Parameters and Specifications:
Type: PLC (Programmable Logic Controller).
Power Consumption: Typical value of 4.75 watts.
Maximum Current: Less than 1mA dc (dry contact to common).
Cable Length: Supports cables with a maximum length of 30 meters (100 feet).
Dimensions and Weight:
Dimensions: Height – 9.5 inches, Width – 0.96 inches, Depth – 9.52 inches.
Weight: Approximately 0.91 kilograms.
Series:
The Bently Nevada 3500 series, which includes the 3500/20 module, is a comprehensive range of products for mechanical condition monitoring.
Features:
Framework Interface Module (RIM): Serves as the primary interface for the 3500 framework, enabling configuration and retrieval of machine information.
Compatibility: Supports communication with compatible Bently Nevada communication processors such as TDXnet, TDIX, and DDIX.
Communication Ports: Features RS-232 and RS-422 serial communication ports on the front panel and I/O (input/output) module for data acquisition and framework configuration.
Modular Design: Facilitates easy configuration, expansion, and replacement of modules.
Fault Detection and Monitoring: Supports continuous, online monitoring for mechanical protection applications, providing early detection of mechanical faults.
Functions and Applications:
Framework Integration: The RIM must be placed in the first slot (adjacent to the power source) within the framework.
Communication Hub: RIM allows for communication between various modules within the 3500 framework.
Monitoring and Protection: The 3500/20, as part of the 3500 system, provides continuous, online monitoring of rotating machinery, helping to identify potential mechanical issues.
Industrial Applications: Widely used in various industrial sectors such as oil and gas, chemicals, power, and manufacturing for condition monitoring and protection of critical machinery.
