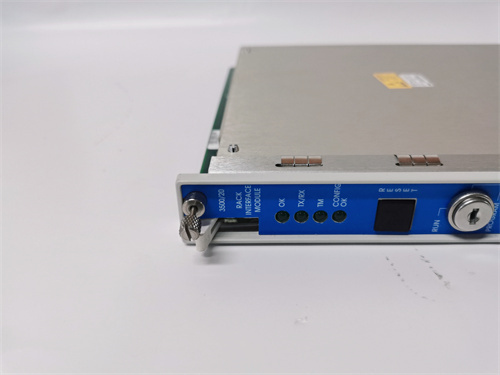

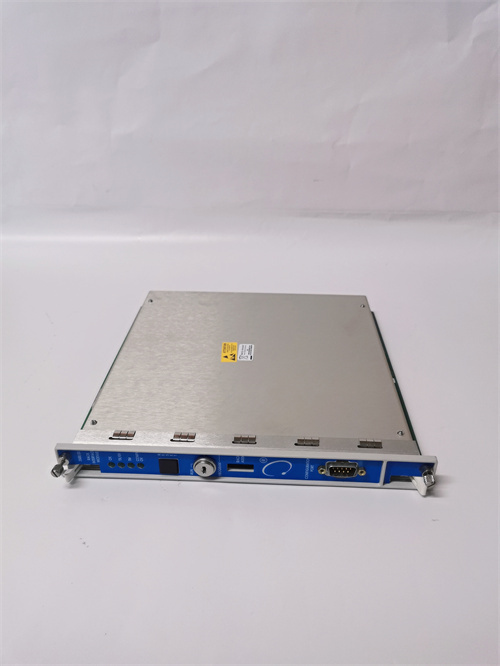

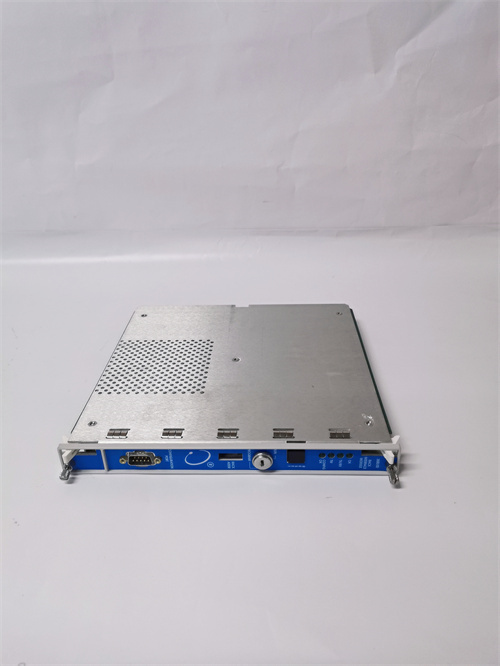

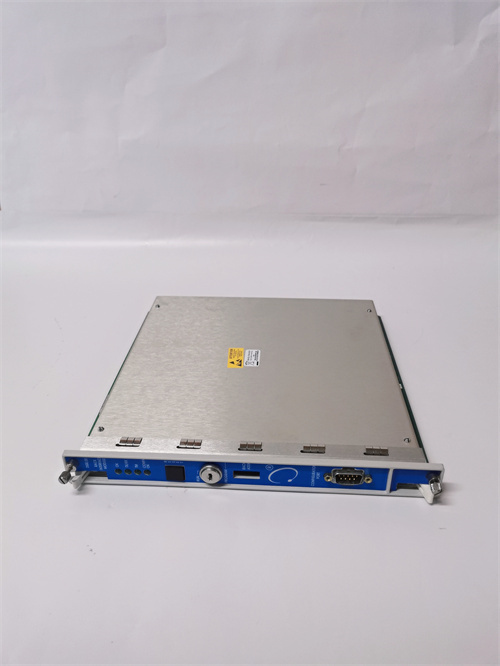

BENTLY 3500/20 Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions
Parameters and Specifications:
Type: PLC (Programmable Logic Controller).
Power Consumption: 4.75 watts, typical.
Maximum Current: Less than 1mAdc, dry contact to common terminal.
Cable Length: Maximum of 30 meters (100 feet).
Rack Interface Module (RIM) Function: Serves as the main interface for the 3500 rack, providing configuration and retrieval of machine information. RIM must be located in slot 1 of the rack.
Compatibility: Compatible with external communication processors such as TDXnet, TDIX, and DDIX.
TMR RIM Features: In TMR (Triple Module Redundancy) applications, the RIM provides “monitor channel comparison,” enabling continuous comparison of outputs from three redundant monitors.
Dimensions and Weight:
Dimensions (H x W x D): 9.5 inches x 0.96 inches x 9.52 inches.
Weight: 0.91 kilograms.
Series:
The 3500 series offers two types of frames: full-size (19-inch EIA frame with 14 available module slots) and mini (12-inch frame with 7 available module slots).
Features:
Flexible Configuration: Supports multiple series of modules, including digital input modules and external terminal modules, for receiving and sending various signals such as analog, digital, and pulse signals.
High Availability and Fault Tolerance: With its TMR structure, the system ensures high availability and fault tolerance, maintaining operation even in the event of a single module failure.
Advanced Process Control: Provides uninterrupted, highly perfected, and error-free process control through a two-out-of-three voting system.
IP Protection: The module may have an IP rating of IP65, indicating resistance to dust and water ingress.
Functions/Role:
Continuous Online Monitoring: The BENTLY 3500/20 is a high-performance monitoring system designed for continuous online monitoring of mechanical equipment and processes.
Multi-Channel Monitoring: It has multiple monitoring channels capable of simultaneously monitoring parameters such as vibration, displacement, speed, acceleration, and more.
Real-Time Data Processing and Analysis: Collects and processes data in real-time, utilizing advanced algorithms and diagnostic tools for timely detection of potential issues and faults.
Fault Warning and Diagnostics: Provides powerful fault prediction and diagnostic capabilities, enabling the identification of residual equipment life, fault patterns, and location information for quick and accurate troubleshooting.
