Description
Parameters and specifications:
Power input: Depending on the model, the input voltage may include AC (AC) 100-240 VAC, 50/60 Hz; Common AC voltage ranges from 110 to 220 Vac, 85 to 264 Vac RMS, or 120 to 373 Vac pk; Direct current (DC) 88 to 140 Vdc (high voltage) or 20 to 30 Vdc (low voltage).
Power output: The specific output depends on the model, for example, there are 24 VDC, 5.5A models, there are 15V DC, 2A models.
Operating temperature: May range from -30°C to +65°C, or from 0°C to 60°C, to -20°C to 60°C, depending on the model.
Input and output insulation resistance: 500 VDC, greater than 10 MΩ.
Overload protection: 120% rated current, automatic protection.
Short circuit protection: automatic protection.
Size and weight:
Power module dimensions: 120.7 mm x 50.8 mm x 251.5 mm (H x W x D).
Power module weight: about 1.39 kg, but there are also 4.0 lb (1.8 kg) models.
Series:

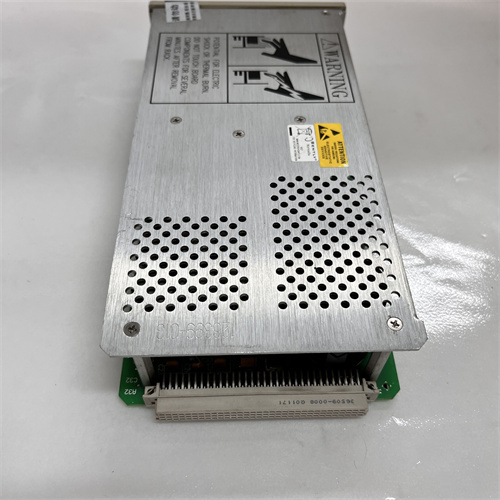

The BENTLY 3500/15 is a high-voltage AC/DC power module developed by BENTLY Nevada and is a key component in the BENTLY 3500 series.
Features:
Stability: With stable and reliable power output, it can meet the power needs of sensors and monitoring equipment in various vibration monitoring systems.
Protection function: overload protection and short circuit protection function to ensure the safe operation of equipment.
Compatibility: Compatible with other modules of the 3500 series, it can be installed in the designated slot on the left side of the rack.
Power conversion: The input AC voltage can be converted into an acceptable DC voltage to adapt to the working requirements of various 3500 series modules.
Functions:
The BENTLY 3500/15 is mainly used in industrial automation and process control equipment to provide a stable and reliable power supply for other 3500 modules. In particular, it is used as a power module in Bentley Nevada mechanical condition monitoring systems.
