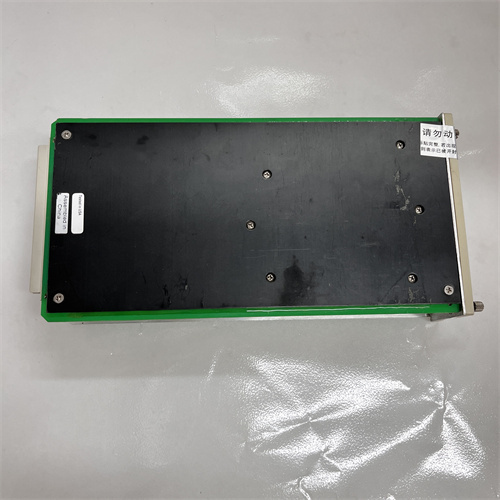

BENTLY 3500/15

Description

Parameters and Specifications:

• Input Voltage (AC): 100-240 VAC, 50/60 Hz²
• Output Voltage (DC): 24 VDC¹
• Input Current: 2 A¹
• Output Current: 5.5 A¹
• Size: 3.35 x 9.5 x 10.25 inches (85 x 242 x 260 mm)¹
• Weight: 4.0 pounds (1.8 kilograms)¹
• Operating Temperature: 0°C to 60°C¹
• DC Output Stability: ±1%¹
• Overload Protection: 120% rated current, automatic protection¹
• Short-circuit Protection: Automatic protection¹
• Input/Output Isolation Resistance: 500 VDC, greater than 10 MΩ¹

Series:

• 3500 Series – A key component of the 3500 monitoring system from Bently Nevada²

Features:

• High Reliability: Designed with high-quality hardware and software for stable and reliable operation in harsh industrial environments⁵⁷
• Flexible Power Supply: Compatible with a wide range of AC and DC voltages³⁴
• Modular Design: Easy to install and configure in the 3500 system rack²⁴
• Redundant Power Supply: Supports single or redundant dual power supply configuration for uninterrupted power⁴
• Protection Functions: Includes overload protection, short-circuit protection, and other safety features¹

Role and Function:

BENTLY 3500/15 is an AC/DC power module designed for use in the 3500 monitoring system from Bently Nevada. Its main function is to provide stable and reliable power to other 3500 modules, including transducers, sensors, and monitoring devices. This power module is critical for ensuring the continuous and accurate operation of the entire 3500 monitoring system²⁴⁵.
