Description

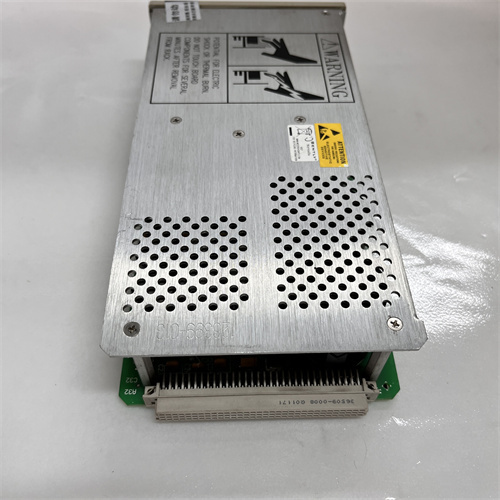

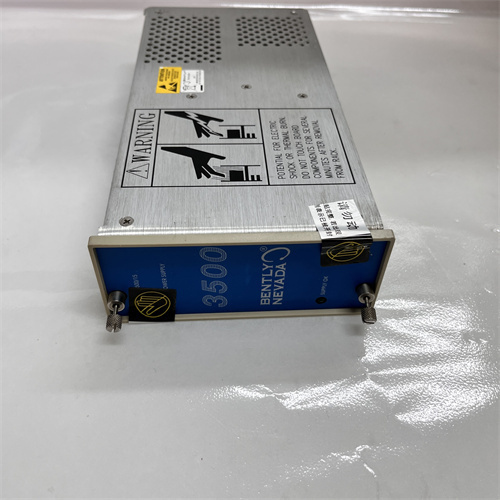

The BENTLY 3500/15 127610-01 is a specialized module designed for use within the 3500 series industrial system. Here are its key parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Power Input: Accepts a range of 100-240 VAC, 50/60 Hz, 2 A.
Power Output: Supplies 24 VDC at 5.5 A.
DC Output Stability: ±1%.
Overload Protection: Automatically protects against 120% of rated current.
Short-Circuit Protection: Features automatic protection.
Insulation Resistance: 500 VDC, greater than 10 MΩ.
Dimensions and Weight:
Dimensions: The module measures 3.35 x 9.5 x 10.25 inches (85 x 242 x 260 millimeters). However, there’s another reference that states the dimensions as 168mm x 98mm x 36mm, which could be a different variant or a measurement for a specific component of the module.
Weight: Approximately 4.0 pounds (1.8 kilograms). Another source lists the weight as around 1 kilogram.
Series:
The BENTLY 3500/15 127610-01 belongs to the 3500 series of industrial systems.
Features:
Stable and Reliable Power Output: Ensures consistent power supply to sensors and monitoring equipment in various vibration monitoring systems.
Protection Mechanisms: Includes overload and short-circuit protection to safeguard equipment and prevent damage.
Half-Height Module Design: Specifically designed to fit into dedicated slots within the rack, ensuring secure installation.
Role and Function:
The BENTLY 3500/15 127610-01 module serves as a critical component in industrial systems, providing power and protection to the sensors and monitoring equipment. Its stable power output and protection mechanisms contribute to the reliable and safe operation of the overall system. Additionally, its compact and specialized design allows for efficient installation and integration within the 3500 series racks.
Please note that the dimensions and weight provided might vary depending on the specific variant or the source of measurement. It’s always advisable to consult the official documentation or contact the manufacturer for the most accurate and up-to-date information on this product.
