Description
The Bently Nevada 3500/05 system is a key component in mechanical condition monitoring solutions, specifically designed for large and medium-sized rotating machinery. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Compatibility: The 3500/05 system rack is compatible with all 3500 series monitors and power modules, allowing for modular communication and power distribution.
Communication: It provides a backplane communication for the inter-communication between various 3500 framework modules.
Dimensions and Weight:

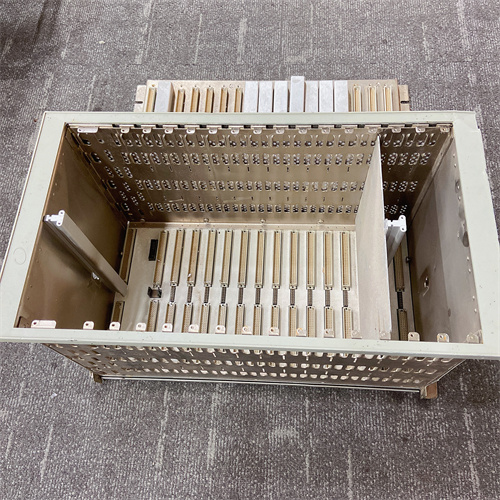

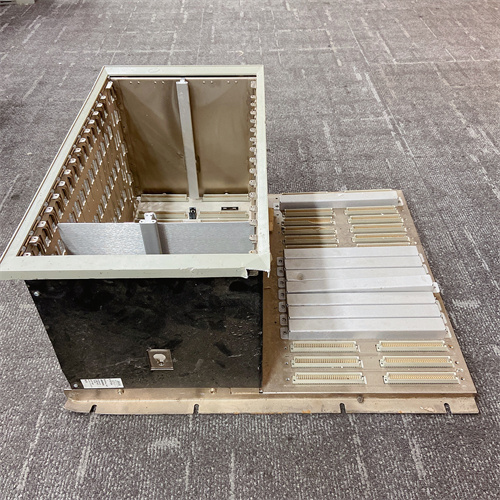

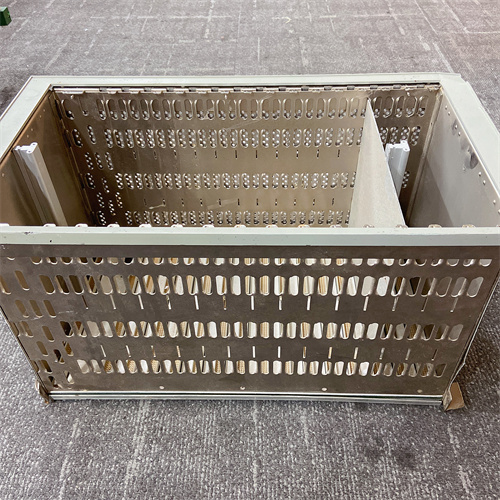

The 3500/05-01-02-00-00-01 rack, which is a full-size 19-inch EIA rack, has dimensions of approximately 48.26 cm (length) x 34.92 cm (width) x 26.59 cm (height).
The weight of the rack is approximately 4.5 kilograms.
Series:
The Bently Nevada 3500 series represents a comprehensive line of products for mechanical condition monitoring.
Features:
Modular Design: The 3500/05 framework allows for flexible configuration and expansion based on user needs.
Hot-Swapping: Modules can be added or removed while the system is powered, minimizing downtime.
Internal and External Terminals: Facilitates easy wiring and expansion.
Multiple Power Support: The system can operate with two power sources, ensuring continuous operation even if one power source fails.
Calibration Capability: Supports calibration using the TK-3E calibrator for accurate monitoring.
Multiple Mounting Options: Supports panel, rack, and bulkhead mounting for versatile installation.
Functions and Applications:
Vibration Monitoring: The 3500/05 system is often used to monitor the vibration of rotating machinery, such as turbines, compressors, fans, pumps, and gearboxes.
Early Fault Detection: By continuously monitoring vibration data, it helps identify potential mechanical faults at an early stage, preventing unexpected downtime and equipment damage.
Real-time Monitoring and Alerting: Provides real-time feedback on the health of the monitored equipment, triggering alerts when abnormal vibrations are detected.
