Description

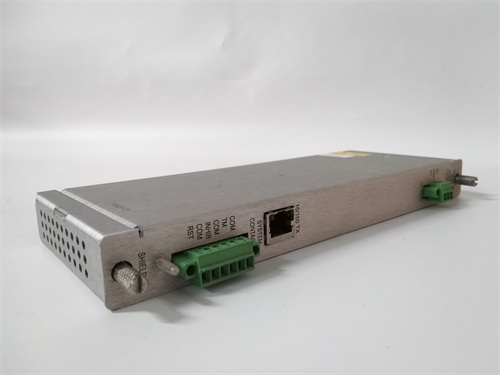

The BENTLY 146031-01 is a high-performance monitoring and data acquisition card specifically designed for industrial automation and process control systems. It belongs to the 3500 series of products offered by Bently Nevada, a leading provider of monitoring solutions for rotating machinery. Here are the key parameters, specifications, dimensions, weight, series, features, and functions of this device in English:
Parameters and Specifications:
Voltage: The BENTLY 146031-01 operates at a voltage of 24V.
Temperature Range: It has a wide operating temperature range, from 1°C to 100°C.
Interfaces: This card features dual or quad channel 10Base-T / 100Base-TX / 1000Base-T interfaces, enabling Ethernet connectivity for robust data transmission.
Dimensions and Weight:
Dimensions: The BENTLY 146031-01 card measures 149mm x 74mm, which adheres to the IEEE P1386/P1386.1 standard for 64-bit PMC module board sizes.
Weight: While the exact weight of the card is not mentioned in the provided sources, it is typically lightweight, suitable for integration into various industrial systems.
Series:
The BENTLY 146031-01 is part of the 3500 series, which offers a comprehensive range of monitoring solutions for rotating machinery and industrial applications.
Features:
Compatibility: The card is compatible with the 3500 monitoring system and related software, connecting through the Transient Data Interface (TDI).
High-Performance Processing: It boasts high-performance processing capabilities, enabling it to handle complex control algorithms and real-time data.
Multi-Channel I/O: With multiple input/output channels, it can connect to sensors, actuators, and other external devices, meeting diverse application needs.
Programmability and Flexibility: The card offers parameter settings and customization options for specific control logic and application requirements, providing both anti-jamming capabilities and fault recovery functions.
Real-Time Monitoring and Data Recording: It monitors parameters like vibration speed, amplitude, and frequency of equipment, recording and analyzing data to aid in timely detection of faults or abnormalities.
Alarm Notification: In case of severe faults or abnormalities, the card can trigger alarm notifications to inform users, ensuring prompt action for maintenance and repair.
Role and Function:
The BENTLY 146031-01 monitoring card plays a crucial role in industrial automation and process control systems. Its main function is to monitor the vibration state of equipment, such as rotating machinery, to prevent equipment failures and ensure the safety and stability of production processes. It collects and analyzes data, providing valuable insights for maintaining the health and performance of industrial machinery.
