Description
Parameters and specifications:

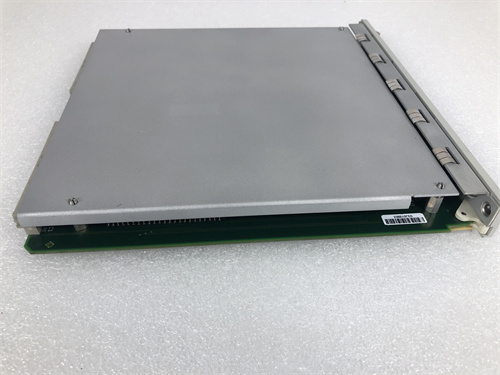

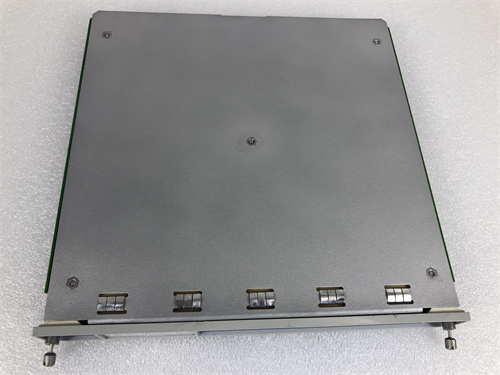

Model: 3500/61.
Number of channels: 6.
Input type: RTD or TC.
Measuring range: -200°C to 800°C.
Accuracy: ±0.1°C.
Resolution: 0.01°C.
Response time: <1 second.
Output: analog, digital.
Alarm: Programmable high-low alarm.
Communication interface: RS-485, Ethernet.
Power supply voltage: 24 VDC.
Power consumption: Maximum 10 W.
Operating temperature range: -40°C to 85°C.
Storage temperature range: -55°C to 125°C.
Humidity: % to 95% (non-condensing).
Protection class: IP65.
Size and weight:
Dimensions: 146 mm x 89 mm x 35 mm.
Weight: 0.5kg.
Series:
The 3500/61 belongs to the 3500 series monitoring module.
Features:
High precision: The measurement accuracy is ±0.1°C, the resolution is 0.01°C.
High reliability: The modular design and redundancy design ensure the reliability of the system.
Ease of use: Belongs to the 3500 series monitoring module and may have some common characteristics of this series module, such as ease of use.
Functions:
Temperature monitoring: It is mainly used for continuous collection of steady-state and transient waveform data to achieve high-precision temperature monitoring.
Data communication: The data is transmitted to the main computer software through Ethernet to achieve real-time data transmission and remote monitoring.
Industrial applications: It may be widely used in industrial automation, process control, environmental monitoring and other fields to provide accurate temperature data support for various equipment and systems.
