Description
Parameters and specifications
Manufacturer: ABB

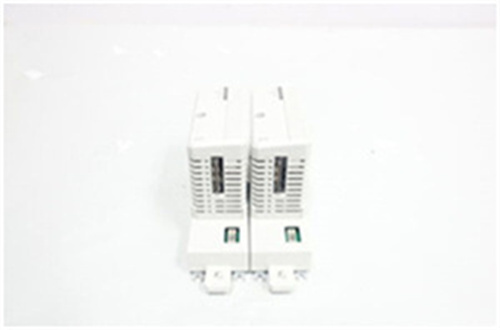

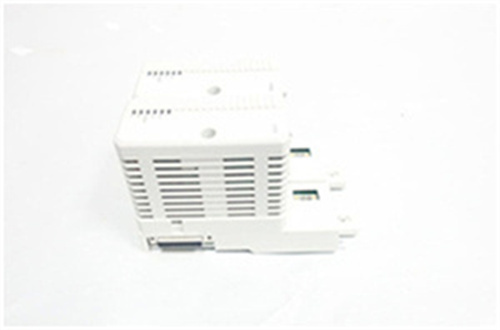

Part number: BC810K02
Status: Unused and rebuilt
Technical specifications:
Kit includes: BC810 (interconnect unit, 2 units), TP857 (Baseplate, width = 60 mm, 2 units), TK851 (cable interconnect length 1.0 m), TB850 (CEX bus terminator, 2 units)
The BC810 device consists of a backboard (TP857) and a power/logic board
The backplane is where the CEX bus connector and external power supply are located, and also carries components such as external power voting diodes and fuses
Size and weight
Dimensions: The exact dimensions are not given directly, but it is mentioned that the width of the base plate is 60 mm.
Weight: It is mentioned that the weight of the BC820K02 is 1.4kg (including the base)
trait
Support for redundant communication interfaces: Allows the use of redundant communication interfaces on the CEX bus to improve system availability
Online CPU replacement support: Support online CPU replacement and continuous CEX traffic
Heat exchange support: Allows heat exchange, that is, the replacement of components without interrupting system operation
External power supply: Supports external power supply
Broad compatibility: The BC810 can be used with several ABB controller models, such as PM861A, PM862, etc
