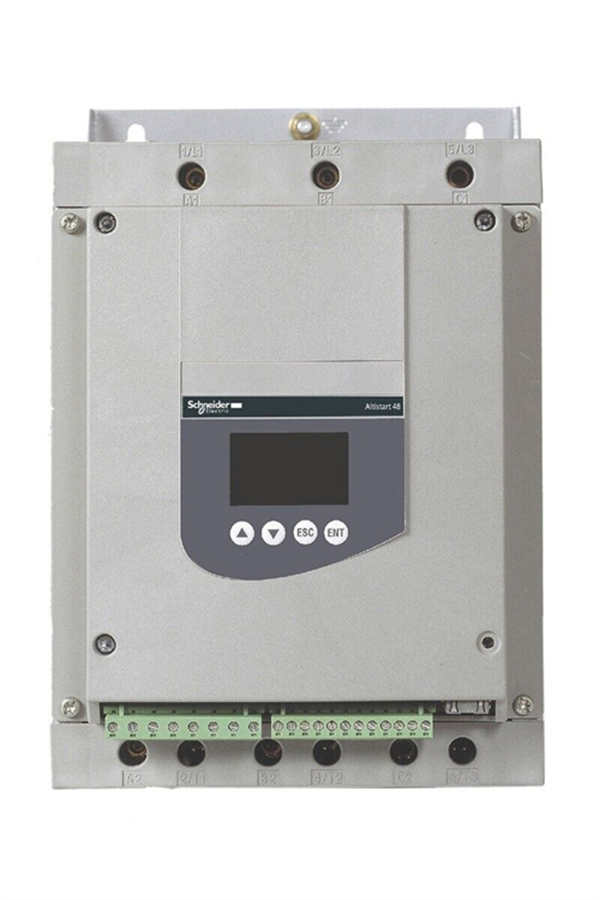

ATS48C59Q

Description

argument
Power: 315kW
Rated current: 590A
Rated voltage: 230-415V / 208-690V-50/60 Hz
Control supply voltage: AC400V
Communication mode: Supports a variety of communication protocols, such as Modbus, FIPIO, Profibus DP, DeviceNet, Ethernet, etc
specification
Product Series: ATS48
Installation method: Standard installation, with heat sink
Overall dimensions: 160mm x 275mm x 190mm (width x height x thickness)
Material Number: 32 (may vary from batch to batch or configuration)
Net weight: 24.5kg
trait
Torque Control System (TCS) : With the ATS48 torque control system, precise control is achieved
Thermal protection of motor: provides thermal protection function of motor
Mechanical protection: including underload and overload protection, threshold value and time adjustable
Rotor protection and steering monitoring: prevent motor damage under abnormal conditions
Factory Settings meet the need for immediate start up: simplify the customer setup process
Integrated display or PowerSuite software: easy for users to set parameters and monitor
Bypass contactor control: to eliminate heat dissipation
Dual configuration (2 sets of motor parameters) : provides more flexibility
Many configurable inputs/outputs: to meet different control needs
Cascade soft start and soft stop of multiple motors: support coordinated control of multiple motors
