Parameters and specifications:

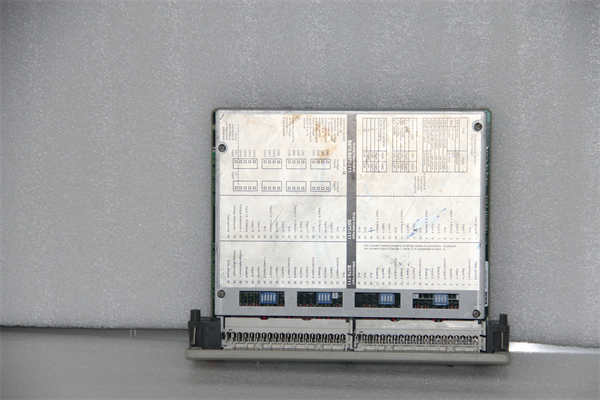

Model: AS-B875-111.
Brand: Schneider Electric.
Series: Modicon series.
Input voltage range: Choose from five ranges, including 0 to 5 V, 1 to 5 V, -5 to 5 V, 0 to 10 V, and -10 to 10 V.
Input current range: Three ranges are available: 0 to 20 mA, 4 to 20 mA, and -20 to +20 mA.
Output format: On the two DIP switches on the module configuration switch, one of four output formats can be selected, including standard, raised, full resolution, and decimal.
Resolution and accuracy: Over 12-bit resolution, complete accuracy of 0.1% at 0-60 °C.
Configuration and reset: Modules can be configured and reset with switches and five-digit IDP switches.
Features:
Multiple voltage and current ranges: Support multiple input voltage and current ranges to meet different application requirements.
High resolution and accuracy: provides more than 12 bits of resolution and 0.1% accuracy to ensure data accuracy and reliability.
Flexible configuration: The output format and input configuration can be selected through the DIP switch to achieve flexible configuration and customization of the module.
Functions:
The AS-B875-111 input module is an input module that provides an analog to digital (A/D) interface that converts analog signals into digital signals for processing by the CPU in the control system. It can check the status of various devices, such as those requiring different voltages and currents.
The module is widely used in industrial automation system, such as PLC (Programmable logic controller) system, used to connect field equipment and control system, to achieve data acquisition, processing and transmission.
