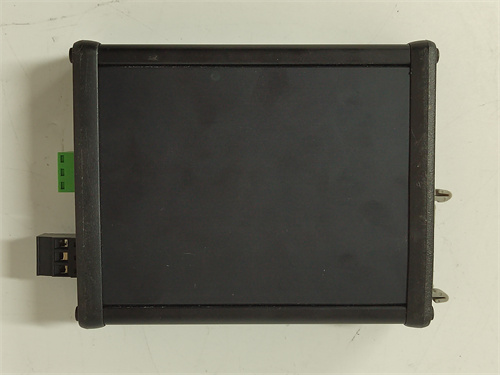

AN-X2-AB-DHRIO

Description

Step 4: Characteristics
Compact design: Easy to install and integrate into various industrial automation systems.
Multi-protocol support: The ability to communicate with devices that support traditional Remote I/O (RIO) and Data Superhighway Enhanced (DH+) communication protocols.
High performance: Supports efficient data transfer rates and multiple baud rate configurations.
Flexible connection: Equipped with Ethernet I/P communication interface and Phoenix network connector, support Daisy chain connection.

2. Size and weight
Dimensions: For communication modules, dimensions may be 109.2mm x 25.4mm x 127mm; For gateways, the dimensions may be 107 mm x 126 mm x 34 mm (excluding connectors).
Weight: The weight of communication module is 310g; The net weight of the gateway may vary from model to model, but it is usually lighter.

1. Parameters and specifications
Operating voltage: Depending on the application scenario, AN-X2-AB-DHRIO may support a variety of voltage inputs, such as 24VDC, 48VDC, etc.
Operating temperature: Generally supports a wide temperature range, such as -40°C to +85°C or 0°C to 50°C.
Communication interface: Supports a variety of communication interfaces, such as Ethernet and DH+.
Supported protocols: EtherNet/IP, Modbus TCP, DF1, DH485, ASCII, etc.
Data transfer rate: up to 10/100 Mbps.
Maximum number of nodes: Up to 64 DH+ nodes are supported in some configurations.
Power input: 24VDC, 48VDC, 220VAC/DC, etc., depending on the model and configuration.
