Description
Operating voltage and environment:
Operating voltages may include 220VAC (external power supply) and 24V DC (communication interface).
Operating temperatures may range from -40°C to +85°C, but may vary slightly in some applications, such as -25°C to +70°C.
Size and weight
Size: Depending on the data, the size may vary. One size is 22.5 x 99 x 114 mm, another is 160x80x170 (width, depth and height), and there is a version about the motor power of 1kW that mentions a size of 111mm, but this is more likely to be a mislabeling of the specific application or product.
Weight: Approx. 150g, but may not be mentioned in other information.
Series and features

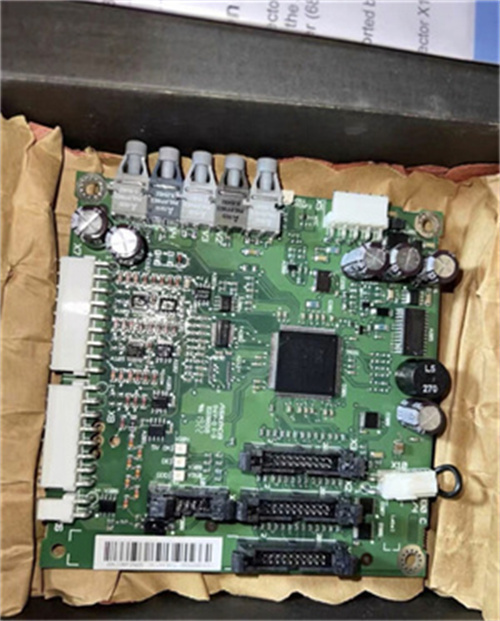

Series: AINT 14C is generally classified as ABB’s analog input module or communication board module.
Features:
Multi-function and high reliability.
Advanced signal processing capabilities.
Highly configurable and supports multiple input and output types.
Compact and robust design.
It integrates seamlessly with ABB’s automation systems for efficient data exchange and control.
Parameters and specifications
Input signal:
The AINT-14C has multiple input options and can be configured to accept analog, digital, and temperature inputs.
For analog inputs, the range includes +/-10V, +/-5V, +/-2.5V, +/-1.25V, 0-10V, 0-5V, 0-20mA, 4-20mA, etc.
Resolution up to 14 or 16 bits with an accuracy of +/-0.1% of the range.
Output signal:
The AINT-14C can be configured to provide analog, digital and relay outputs.
The analog output may include A 4-20mA signal with a D/A accuracy of 12 bits.
Digital output may include RS485 full digital output, with its own communication protocol, can also be configured according to customer requirements T4 4 preset position switch output or T8 8 preset position switch output.
