Description
Parameters and Specifications:

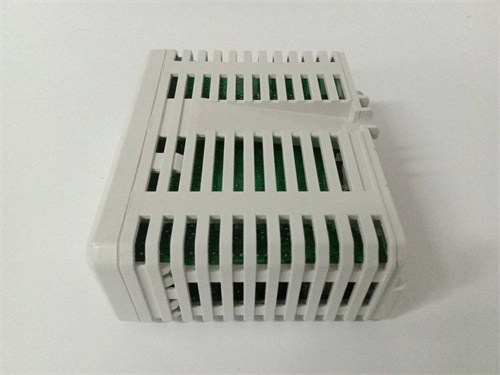

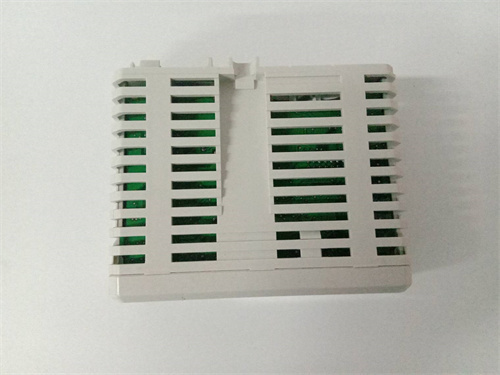

Input Channels: The ABB AI830 analog input module has 8 input channels designed for measuring temperature. These channels support Pt100, Cu10, Ni100, and Ni120 sensors as well as resistance inputs.
Resolution: The module has a 14-bit resolution for accurate measurements.
Input Monitoring: The inputs are monitored for open circuits, short circuits, and have an input ground sensor.
Linearization and Conversion: The module performs linearization and converts temperatures to either Celsius or Fahrenheit.
Communication Rate Settings: Supports setting the line frequency filter period time for either 50Hz or 60Hz.
Features:
Versatile Connectivity: Supports multiple types of sensors and resistors, providing flexibility in terms of connecting different types of temperature sensors.
High Accuracy: With its 14-bit resolution, the module ensures high-accuracy temperature measurements.
Configurable Input Monitoring: The ability to monitor inputs for open and short circuits adds a level of safety and fault detection to the system.
Communication Compatibility: Compatible with various communication protocols, allowing seamless integration with other automation systems.
Functions/Role:
Temperature Monitoring: The AI830 module is primarily used for temperature monitoring in industrial applications, converting analog signals from temperature sensors into digital data for further processing and analysis.
Integration with Automation Systems: The module integrates with industrial automation systems, such as DCS (Distributed Control Systems) and PLCs (Programmable Logic Controllers), enabling real-time temperature monitoring and control.
