Description
Parameters and Specifications:

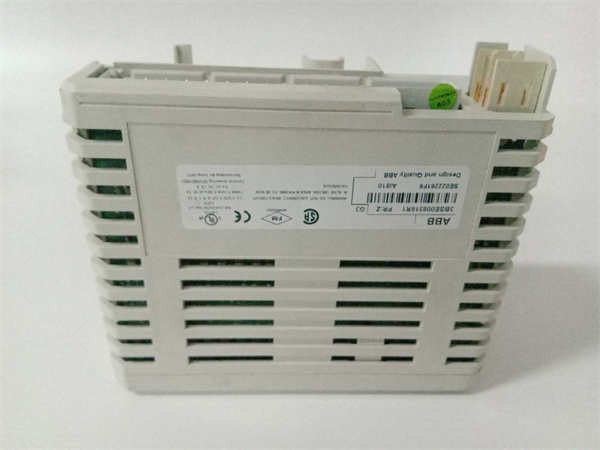

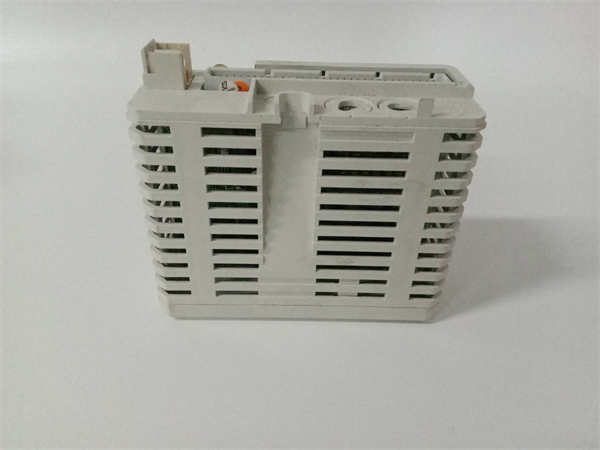

Input Type: The AI810 supports both voltage and current inputs.
Input Impedance: Voltage input impedance is 290 kΩ and current input impedance ranges from 230 to 275 kΩ.
Input Voltage Range: Up to 30 VDC without damage.
Accuracy: High accuracy with 0.1% maximum error.
Temperature Drift: Voltage has a maximum drift of 70 ppm/°C to 100 ppm/°C; current has a maximum drift of 50 ppm/°C to 80 ppm/°C.
Update Cycle Time: 8 milliseconds.
Isolation: The module provides group and ground isolation.
Maximum Cable Length: Up to 600 meters (656 yards) for field cables.
Features:
Multiple Input Channels: The AI810 module typically supports multiple analog input channels, enabling the monitoring and measurement of multiple physical quantities.
High Precision: Provides high-precision analog signal measurement for accurate data acquisition.
Electrical Isolation: Ensures electrical isolation to prevent interference and fault propagation, enhancing system stability and safety.
Communication Compatibility: Supports industrial fieldbus communication protocols for seamless integration with other automation devices.
Wide Operating Temperature Range: Designed to operate within a wide temperature range, suitable for various environmental conditions.
Diagnostics and Monitoring: Includes diagnostic and monitoring features to help detect and resolve potential issues or faults.
Functions/Role:
Analog Signal Acquisition: The AI810 module serves as the interface between analog sensors and other devices, converting analog signals into digital form for further processing and analysis.
