Description
Parameters and specifications:
Input voltage: 24V DC.
Input current: Support 0… 20 mA, 4… 20 mA, 0… 10 V or 2… 10 V.
Output voltage: 0-10V DC.
Output current: 4-20mA.
Operating temperature range: -20°C to +60°C.
Storage temperature range: -40°C to +85°C.
Protection level: IP20.
Number of channels: 8.
Resolution: 12 bits.
Fault protection function: overload protection, short circuit protection, overvoltage protection, etc.
Series:

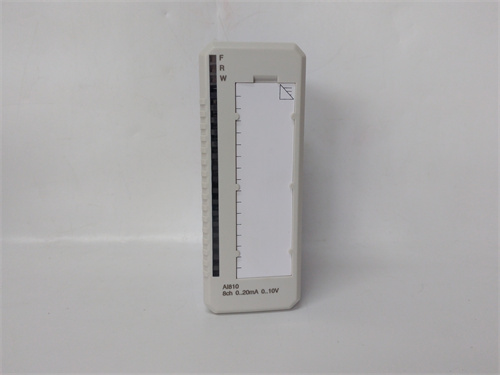

The AI810 is part of ABB’s industrial automation control system and may belong to a specific family of modules, but the specific family name is not explicitly mentioned in the search results.
Features:
High accuracy and reliability: The AI810 module is highly accurate and reliable, and is able to measure and convert analog signals in real time and transmit them to the controller for processing.
Multiple protection functions: overload protection, short circuit protection, overvoltage protection and other fault protection functions.
Support for various communication protocols: PROFIBUS-DP, Modbus RTU and other communication protocols, easy to communicate with other devices.
Single-ended unipolar input: 8 channels are single-ended unipolar inputs that can handle 0… 20 mA, 4… 20 mA, 0… 10 V or 2… 10 V input signal.
Isolation from the ground: a group of 8 channels are isolated from the ground for increased security.
Input support HART communication: Analog input support HART communication protocol.
Functions:
Industrial automation control: AI810 module is widely used in various industrial control systems, such as power, chemical, metallurgy, oil, gas and other industries, for real-time monitoring and control.
Signal conversion: The conversion of an analog signal from a sensor into a digital signal for further processing and analysis by a controller or computer system.
Building a complete control system: The AI810 module can be used with other modules to build a complete control system for the operation and monitoring of an automated production line.
