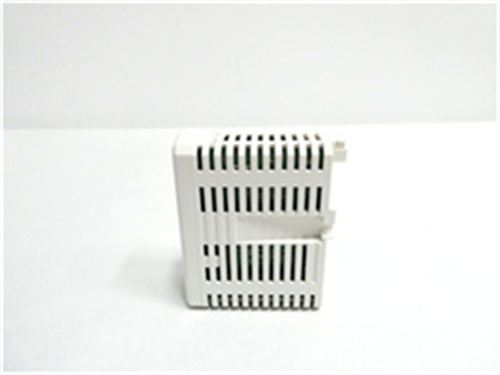

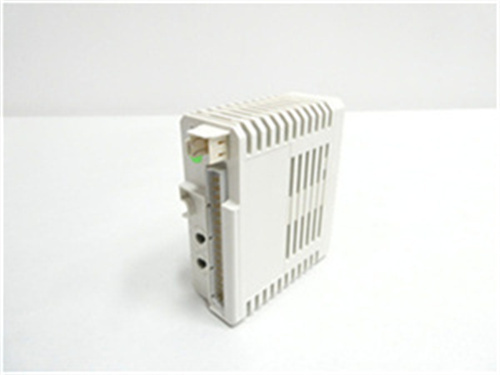

AI801

Description

‌Parameters and Specifications‌:

–‌Input Current‌: 500mA1, with other sources indicating a range of 100-400A2.
–‌Output Voltage‌: 24VDC1, with another mention of 220V3. This could be due to different model variations or applications.
–‌Output Power‌: 360W1.
–‌Input Voltage Range‌: 85~264VAC1.
–‌Maximum Output Current‌: 15A1.
‌Dimensions and Weight‌:

–‌Dimensions‌:

• 115mm x 48mm x 150mm1.

• Another source lists a smaller size of 4848483, which may refer to a different version or aspect of the module.
  –‌Weight‌:

• Approximately 1.2kg1.

• Other sources mention weights ranging from 1kg to 2kg32.

•
  ‌Series‌:

• Part of ABB’s AC 800M control system series4.
  ‌Features‌:

–‌High Precision‌: Offers high precision for accurate signal acquisition4.
–‌Multiple Input Channels‌: Equipped with 8 current input channels capable of handling up to 30V DC4.
–‌Robust Design‌: Designed to withstand short circuits from DC transmitters without damage4.
–‌PTC Resistance‌: Uses PTC resistors for current limiting4.
–‌Versatile Input Signals‌: Accepts both voltage and current input signals4.
‌Applications‌:

–‌Industrial Automation‌: Primarily used in industrial automation systems, specifically within ABB’s AC 800M control systems4.
–‌Signal Acquisition‌: Collects analog signals from field devices and transmits them to the control system for processing4.
–‌Process Control‌: Essential in process control applications requiring precise monitoring and control of analog signals
