Description

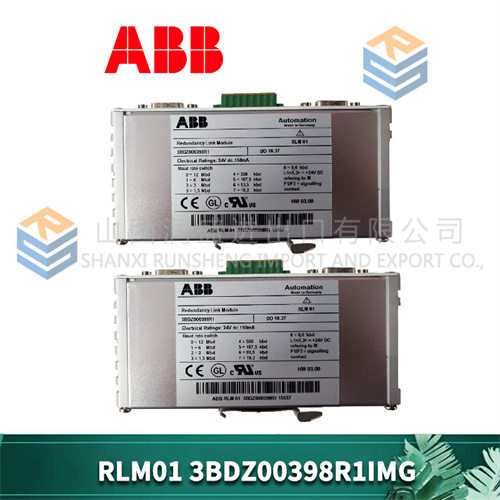

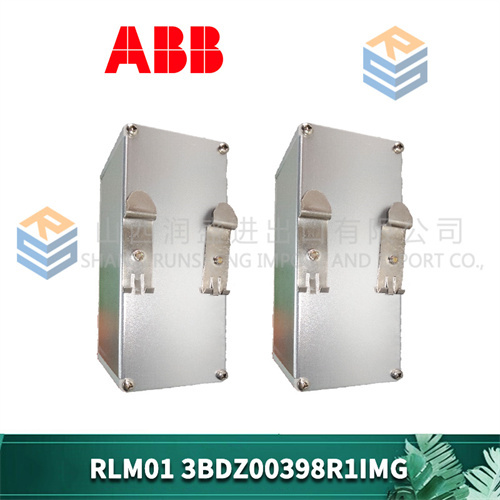

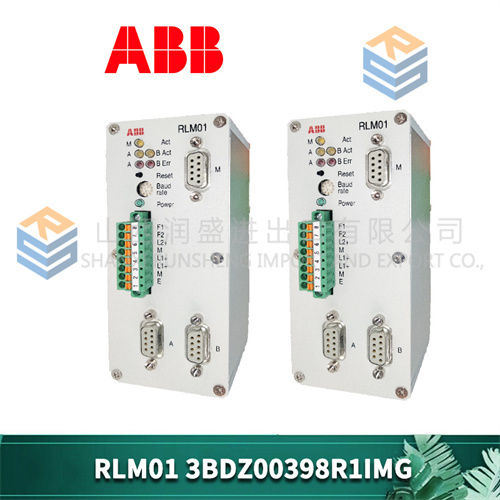

ABB RLM01 is a redundant bus controller primarily used in industrial automation and control systems. The following are detailed answers about the parameters, specifications, dimensions, weight, series, features and functions of the controller:
argument
Function: Convert two redundant links into one PROFIBUS DP link, or vice versa.
Supported transmission rates: 9.6 Kbps to 12 Mbps.
Number of supported PROFIBUS clients: A maximum of 31 PROFIBUS clients are supported.
Supported interface types: Three PROFIBUS interfaces.
specification
Product net depth/length: 90mm.
Product height: 103.5 mm.
Product width: 175.5 mm.
Net weight: 0.46 kg.
Size and weight
Dimensions: Length × width × height is 90×175.5×103.5 mm.
Weight: About 0.46 kg.
series
ABB RLM01 is part of ABB’s family of automation and control systems, specifically redundancy solutions for PROFIBUS bus networks.
trait
Redundancy: Supports the conversion of redundant links to a single link or vice versa to ensure high system availability.
High-speed communication: supports a transmission rate of up to 12 Mbps, meeting the real-time requirements of industrial automation.
Multi-client support: Up to 31 PROFIBUS clients can be connected to meet the needs of large control systems.
Transparent configuration: No slave address is required, simplifying the configuration and management of PROFIBUS network.
Error monitoring: Indicates error status via LED or signal contactor for easy fault diagnosis and maintenance.
Flexible scalability: In the case of Repeaters (fiber-electrical), the network can be further expanded.
effect
ABB RLM01 plays a key role in industrial automation and control systems. It ensures high availability and stability of the system by converting redundant links to a single link or vice versa. At the same time, its high-speed communication and multi-client support make it able to meet the requirements of real-time and extensibility of large control systems. RLM01’s transparent configuration and error monitoring also simplifies network configuration and troubleshooting, improving system maintenance efficiency.
