Description

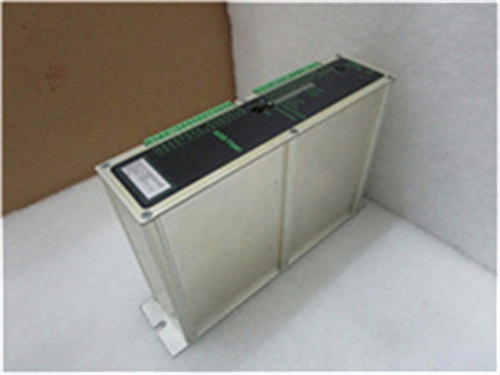

ABB V4550220-0100 is a drive controller processor or a variable frequency drive (VFD) that is part of ABB’s EPIC II series. It is designed for industrial automation and control applications, providing precise motor control and efficient energy usage. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and role in English:
Parameters and Specifications:
Model Number & Series: V4550220-0100 (EPIC II Series).
Brand: ABB.
Speed Change Control: The speed change is controlled by parameter 2204 ACCELER TIME 2.
Motor Control: Supports both start/stop and direction control through DI1 and DI2 inputs.
Fault Detection and Handling: The relay output 3 indicates a fault condition, which can be used for fault handling.
Motor Parameters: The motor’s rated parameters, such as those found in the motor’s nameplate, must be manually entered into the drive controller for proper operation.
Dimensions and Weight:
Exact dimensions and weight may vary, but ABB drives are typically designed for compact installation in industrial environments.
Weight: Approximately 3.00 pounds.
Series:
As mentioned, it belongs to the EPIC II series of ABB drives.
Features:
Expanded I/O Capability: Provides a larger expansion capability with additional digital input/output (DI/DO) and fieldbus control support.
Power Protection: Incorporates features like voltage sag correction, continuous voltage adjustment, and load voltage compensation to protect sensitive industrial equipment.
Fast Load Disconnect: Quickly disconnects from utility power and takes over the load during power disturbances.
Flexible Programming and Control: Allows for programming and customization to meet specific application requirements.
Role:
The ABB V4550220-0100 drive controller plays a critical role in industrial automation systems. It controls the speed and torque of electric motors, enabling precise and efficient operation of various industrial machines and equipment. Its features, such as expandable I/O, power protection, and fast load disconnect, make it suitable for a wide range of applications where reliable and precise motor control is essential.
Please note that specifications, dimensions, and weight may vary depending on the specific model, version, or any updates made by ABB. It is always recommended to refer to the official product documentation or contact ABB directly for the most accurate and up-to-date information.
