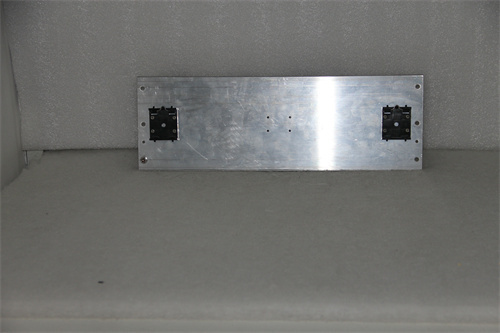

ABB UPC090AE01

Description

Parameters and Specifications:

• Brand: ABB
• Model: UPC090AE01
• Type: Universal PLC Module¹
• Features:
  • High Performance: Uses a high-performance processor for fast scanning and processing speeds¹.
  • High Reliability: Uses quality components and is rigorously tested and certified¹.
  • User-friendly: Provides a friendly user interface and rich maintenance tools¹.
  • Modular and Expandable: Supports modular design for flexible expansion based on application needs¹.
• I/O Points:
  • 32 Digital Inputs/Outputs¹
  • 8 Analog Inputs/Outputs¹
  • 2 High-speed Pulse Outputs¹
• Communication Protocol: Supports Modbus RTU¹.
• Power Supply: 24 V DC¹
• Power Consumption: Less than 50 W¹
• Operating Temperature: -40°C to +70°C¹
• Humidity: 5% to 95% (non-condensing)¹
• Protection Rating: IP67¹

Dimensions and Weight:

• Exact dimensions and weight are not specified in the provided information.

Series:

• UPC090AE01 belongs to ABB’s Ability™ control system series.

Features:

• The UPC090AE01 is designed for industrial control systems, especially distributed control systems (DCS) and programmable logic controllers (PLC)².
• It provides multi-channel I/O with support for both analog and digital input/output signals².
• It has two different voltage levels for the backplane power: 24VDC and 230VAC².
• It offers two connection options for signal wiring: screw terminals and spring terminals².
• It integrates an FBP bus interface for communication with the CPU and distributed I/O expansion².

Role and Function:

The ABB UPC090AE01 is a universal PLC module that finds applications in various industrial automation scenarios such as discrete control, analog control, motion control, data acquisition, machine control, power plants, oil and gas, chemicals, water treatment, food and beverage, etc.¹. Its modular and expandable design allows for flexible integration and expansion based on specific application needs¹.
