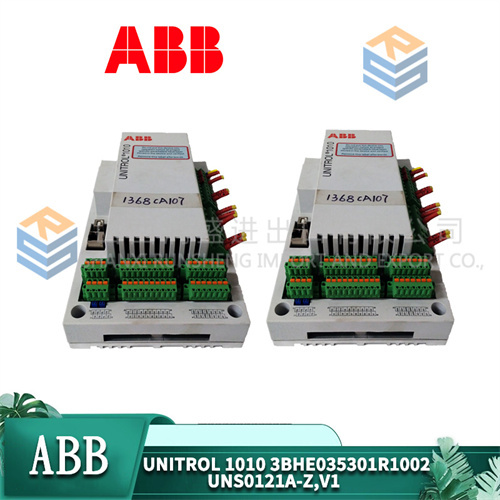

ABB UNITROL 1010

Description

Parameters and Specifications:

• Processor: 32-bit RISC Processor
• Clock Speed: Up to 200 MHz
• I/O Points: Maximum 256 Points
• Communication Interfaces: RS232, RS485, Ethernet
• Power Supply Voltage: 24V DC
• Power Consumption: 20W
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Protection Rating: IP67¹

Dimensions and Weight:

• Dimensions: 225 mm x 165 mm x 80 mm
• Weight: 2.5 kg¹

Series:

• UNITROL 1010 Series¹

Features:

• High Performance: Equipped with a 32-bit RISC processor with a clock speed of up to 200 MHz¹.
• High Reliability: Redundant design ensures system operation even in challenging conditions¹.
• Flexible Expansion: Supports expansion up to 16 I/O modules¹.
• Ease of Use: Intuitive programming tools and comprehensive user manuals¹.
• Supports Multiple Communication Interfaces: RS232, RS485, Ethernet¹.
• Advanced Load Sharing: Built-in support for dual channels for advanced load distribution in parallel-operating units².
• Rotating Diode Monitoring: Ensures safe and efficient operation of the system².
• Automatic Synchronization: Ensures synchronization between various components².
• Integrated Communication Options: Provides various communication options for system integration².

Applications:

• ABB UNITROL 1010 is a powerful small indirect excitation system designed for voltage regulation of small and medium-sized synchronous generators and industrial machines².
• It can be used in various industrial automation applications such as discrete control systems, process control systems, motion control systems, machine vision systems, and data acquisition systems¹.
• The applications cover industries like automotive manufacturing, food and beverage, packaging, printing, electronics, chemicals, oil and gas, power, and water treatment¹.
• It is also suitable for applications in power plants, substations, factories, renewable energy systems³.
