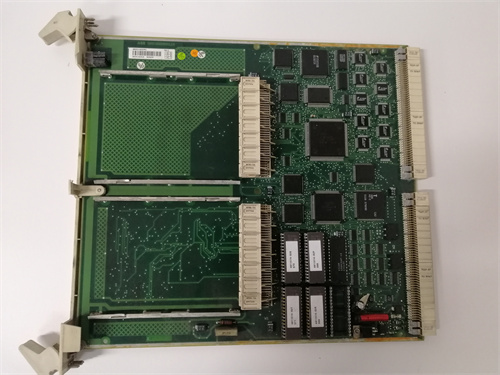

ABB SC520

Description

dav

Parameters and Specifications

• Brand: ABB
• Model: SC520
• Control Principle: Other¹
• I/O Control Method: Batch Processing (Refreshes I/O Instructions When END Instruction is Executed)¹
• Operation Processing Time: Basic Instructions: 0.8μs/Instruction, Application Instructions: 1.52 to Several Hundred μs/Instruction¹
• Programming Language: Logic Ladder Diagram and Instruction List¹
• Program Capacity: 8000 Steps Internal, Expandable to 16000 Steps with Additional Memory Cartridges¹
• Number of Instructions: Basic Sequential Instructions: 27, Stepping Ladder Instructions: 2, Application Instructions: 128¹
• I/O Configuration: Hardware I/O Configuration Points: 256 (User Selectable, Software Configurable Addresses for Input 256, Output 256)¹

dav

Series

• The SC520 module is part of ABB’s automation system and control products range. It is not specifically mentioned as belonging to a named series.

Features

• Flexible Connectivity: Supports standard fieldbus, analog and digital I/O, as well as Ethernet-based sensors and transmitters².
• Extensive Monitoring: Provides monitoring, control, and alarm functions for various subsystems on a ship².
• Integration: Can be integrated with other subsystems to provide comprehensive vessel management solutions².
• Data Recording: Capable of recording detailed consumption data for further analysis¹.
• Diagnostics: Digital transmitters with device diagnostic functionality enable preventive maintenance

dav

Role

• Automation and Control: The ABB SC520 module is a key component in automation and control systems, providing reliable and efficient monitoring and control functions for various industrial applications¹.
• Integration and Communication: Its flexibility and connectivity make it a valuable component for integrating and communicating with other subsystems
